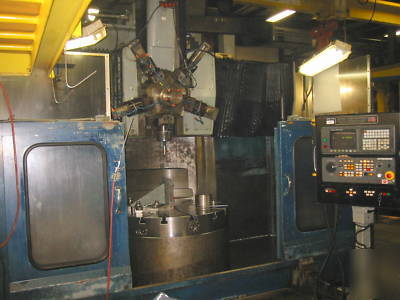

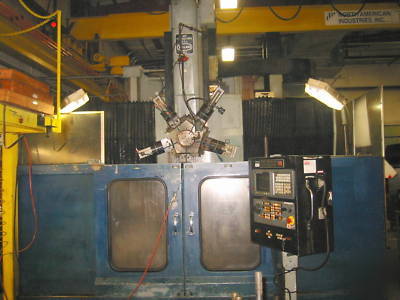

Bullard 46" cnc vtl vertical boring mill
This is a CNC operated Bullard VTL from our own machining operation. We have our own service techs who have meticulously maintained it with all scheduled maintenance and repairs. It is in excellent running condition and can be viewed under power in our Stoughton Ma. facility. The specifications are as follows:

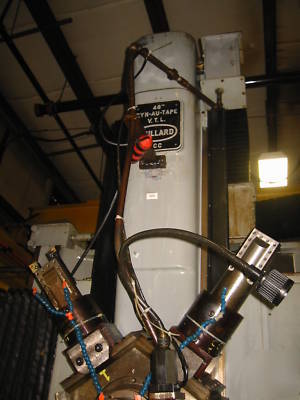

FANUC CNC VTL BULLARD DYN-AU-TAPE 46 DIA CHUCK

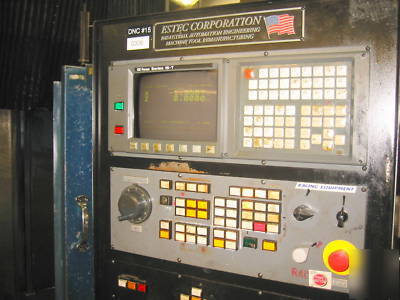

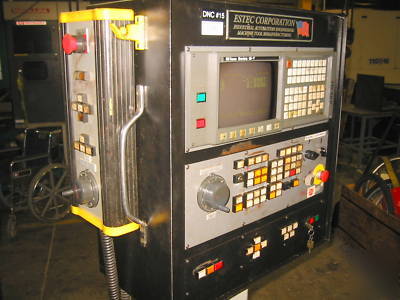

FANUC 15TB CNC CONTROLLED BULLARD RETROFITTED IN 1996

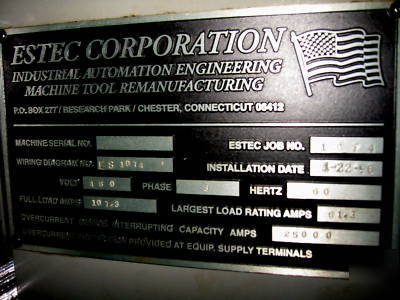

RUN IN SINGLE SHIFT SHOP, ORIGINAL OWNER SINCE RETROFIT BY ESSEX MACHINE, CHESTER CT.

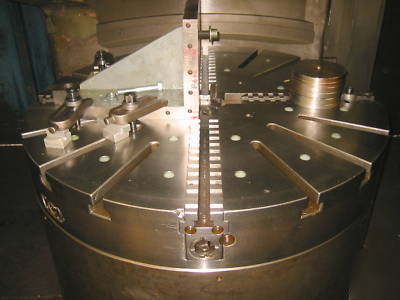

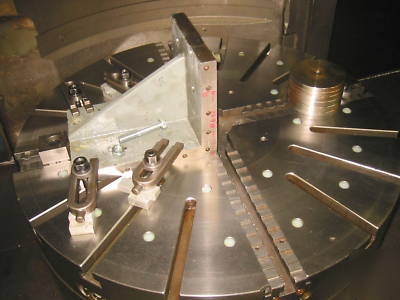

4-JAW COMBINATION INDEPENDENT / UNIVERSAL CHUCK (4 SEPERATELY DRIVEN JAWS, OR USE SCROLL FOR SYMMETRICAL JAW MOVEMENT)
40/50 HP MAIN SPINDLE; SPEED RANGES 5 RPM 180 RPM

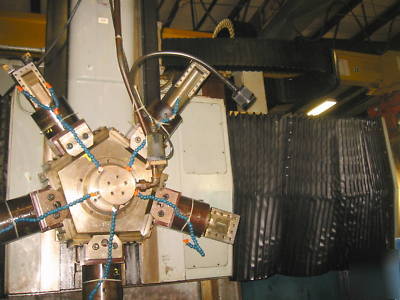

5-STATION COOLANT FED TURRET HOLDS 4 DIA. TOOLS, CNC CONTROLLED INDEXING MOVEMENT.
46 DIA. CHUCK; 58 SWING; 23.5 VERTICAL RAM TRAVEL, 40 WORKPIECE HEIGHT, X-AXIS SOFT TRAVEL LIMITS +31.1 -4.1
FLOOR SPACE 148 WIDE x 160 DEEP x 168 HIGH (TOP OF RAM), 3 DIA. BALLSCREW.
OWNER HAS ALL ORIGINAL DOCUMENTATION AND BUILD RECORDS, INCLUDING A FULL SET OF MANUALS.
MACHINE COMES WITH A SELECTION OF TOOLHOLDERS AND JAWS
