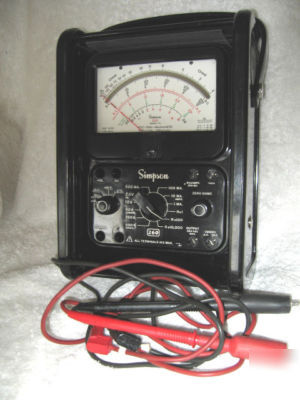

Simpson 260-7M vom volt ohm meter

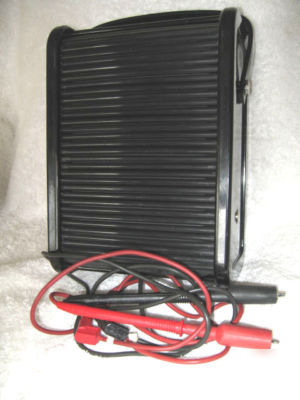

This VOM is in very good condition. The meter has always been in its protective roll top case, and is in excellent condition. The case has some ware, but is also in good condition.
Ranges: 250mV, 1V, 2.5V, 10V, 50V, 250V, 500V, 1000V
Accuracy 2% of full scale * Sensitivity 20K per volt
Ranges 2.5V, 10V, 50V, 250V, 500V, 1000V
Accuracy 3% of full scale * Sensitivity 5K per volt
Rated Circuit-To-Ground Voltage 1000V (AC or DC) max.
5 Ranges -20 to +50dB * Reference 0dB= 1mW into 600
Ranges 50 A, 1mA, 10mA, l00mA, 500mA, 10A
Accuracy 1.5% full scale 5O A, 2.0% of full scale, all other
Voltage Drop: (Nominal) 250mV on 50 A , 1mA; 255mV on 10mA , 10A; 300mV on 100mA, 500mV on 500mA
Accuracy 2.5 of arc on Rx1, 2.0 of arc on other
Maximum Indication 0-2K , 0-200 , 0-20M
