Fletcher terry 3000 multi-material mat cutter 60 inch
This listing is for a matte cutter.
* Make: Fletcher Viscom / The Fletcher-Terry Company
* Model / Part #: F300060B-07/01
* Size: 60" (sixty inches) (60 in) (60in) (60inch)
* List Price: Approximately $2100
* Description: Multi-Material / Matte Cutter

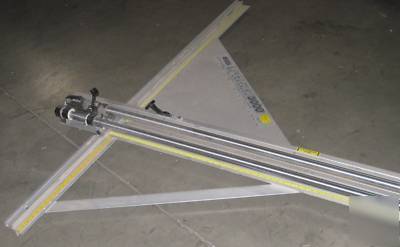

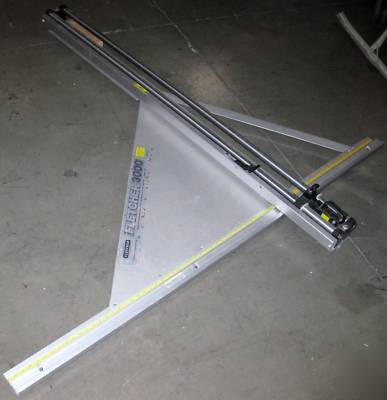

Fletcher 3000 Multi-Material Cutter
The Fletcher 3000 wall-mounted cutter is a unique glass cutting unit that compliments any automated glass cutting operation. The 3000 can be used in any glass and industry fabricator as a cutting method for small volume custom work, prototype requirements, recuts, and aids in the company s scrap reduction efforts.
* Wall-mounted machine available in 48 or 60 cutting capacity
* Cleanly scores glass and acrylics up to 1/4 (6.35mm) Off-line cutting method for custom cutting and prototype usage
* Score and break-out glass and acrylics right on machine
* Patented break-out device
* Machine is Wall-Mounted, Multi-Material Cutting Capability.
* Material Clamping System: Lever-type clamping system that covers the entire machines height to prevent buckling and shifting of material.

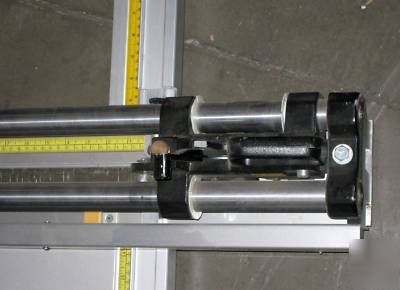

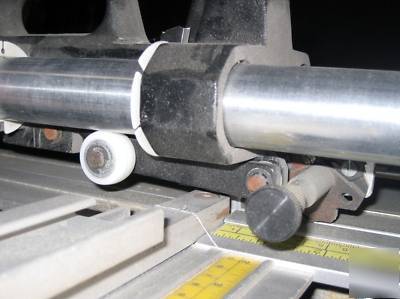

* Cutting Head: Rides on high tensile strength steel, hard chrome-plated and polished. Teflon bushings for ease of movement, turret assembly for rapid, safe blade selection and change.
* Glass Cutting Turret has a ramping feature that allows the lifting of turret device on top edge of glass resulting in a cleaner edge break.
* Horizontal Support System: Factory assembled with steel rivets insuring squareness of machine over time.
* Description: 60 3000 Multi-Material Cutter
* Cutting Material: 48 and 60 - Glass / Acrylic / Sytrene / Foamboard / Cardboard
* Max. Material Thickness: Up to 1/4 (6.35mm)
* Product Weight: 85 lbs. (39kg)
* Wall Space: 36.38 sq. ft. (3.38mm)
* Vertical Cutting Capacity: 60 (1524mm)
Fletcher's online product page is located at http:// /literature/3000_Glass_Mkt.pdf
