Square d split bus panel w/ 100 amp lighting contactor

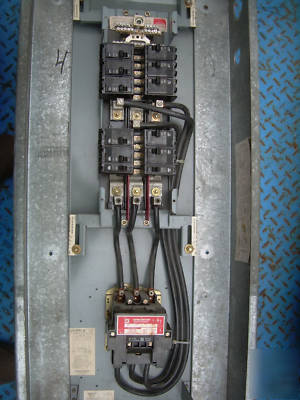

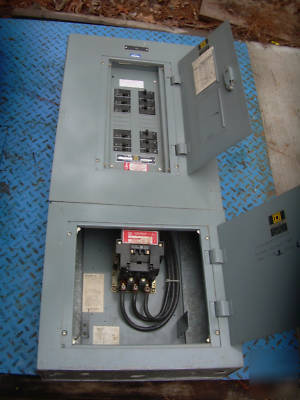

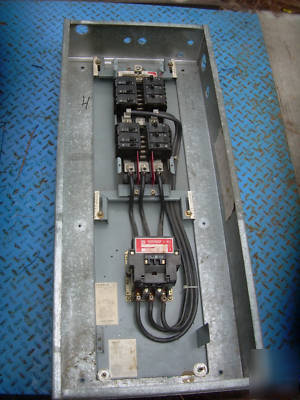

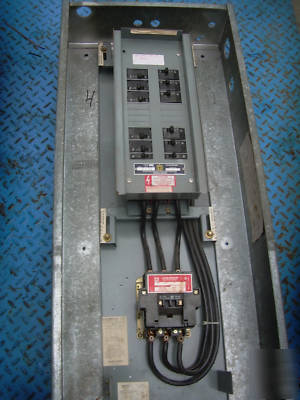

This is a good used panel which has a split bull meaning the breakers in the top half operate in the normal way. The breakers in the bottom half have their input power controlled by the 100 amp lighting contactor. The breakers in the top are as follows:

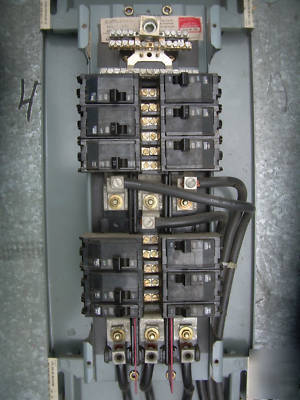

All breakers are NQOB , the type that are attached with a screw.
The panel is rated 100 amp top and 100 amp bottom. It is a catalogue NQOR 57119-3

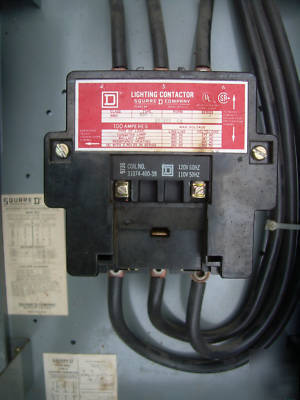

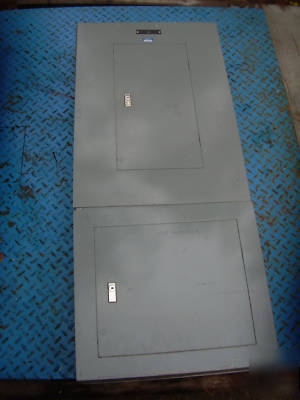

The lightning contactor is a class 8903 Type S . It measures 47 inches high by 20 wide and 8 inches deep.
