60,000 ton verson wheelon direct acting hydraulic fluid

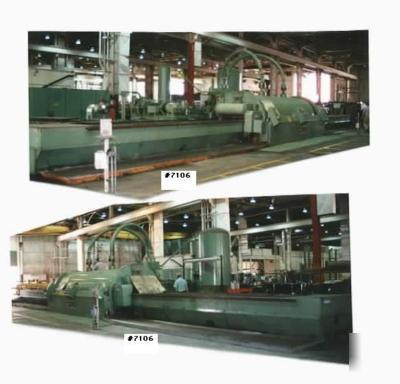

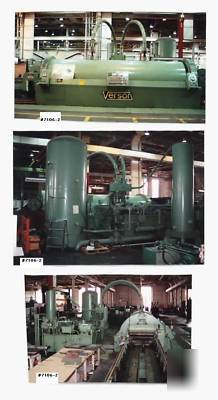

ONE Preowned VERSON Wheelon Direct Acting Hydraulic Fluid Forming Press
CAPACITY 60,000 TON
FORMING PRESSURE . 10,000 PSI MAXIMUM
TRAYS .. 3
TRAY SIZE AT TOP . .. 50 X 240
TRAY AREA AT 6 DEPTH . . . 42 X 233
TRAY AREA AT 10 DEPTH .. .. 37 X 228
(FILLER PLATES AVAILABLE REDUCES DEPTH OF TRAYS TO 6 )
MOTOR DRIVES (**ALL WIRED 440 VOLTS, 3 PHASE**)
(2) EVACUTE HIGH PRESSURE PUMPS . .. 150 HP & 75 HP
(1) ACCUMULATOR CHARGE PUMP .. 30 HP
(1) TRAY PUMP . 20 HP
(1) PILOT PRESSURE PUMP . 20 HP
(1) VACUUM AND COOLER PUMP .. 15 HP
(1) SUPER-CHARGE .... 10 HP
(1) PAD VACUUM PUMP . 1 HP
(1) CANO-MICRO CLEAN OIL FILTER . HP
(1) ROLL COVER PUMP . . 3 HP
CONTROLS (**WIRED 115 VOLTS**)
(2) SIDE CONTROLS STATIONS LOCATED AT END OF EACH OF BARREL WITH EMERGENCY STOP BUTTONS
(2) THROW PAD ROLL-UP DEVICE ON TABLES
PRICE: ON SITE, (LOS ANGELES, CA) $1,500,000.00
