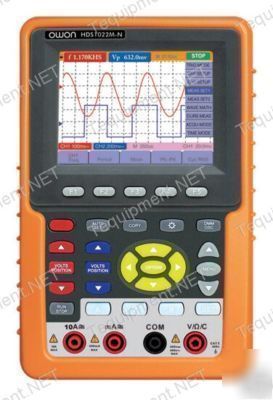

Owon HDS1022M-n handheld dig. oscilloscope & multimeter
20 mhz 2 Channel Digital Storage
Oscilloscope & Multimeter TrueRMS AC
* 3.8 Inch Color Display With High Resolution
* 2 In 1 (Multimeter Function Support)
* Mini Design For Easy Carrying
* Replacement Li-on Battery Back-Up(6H)
* All of our OWON products come with a USA based warranty. Beware of imitations!

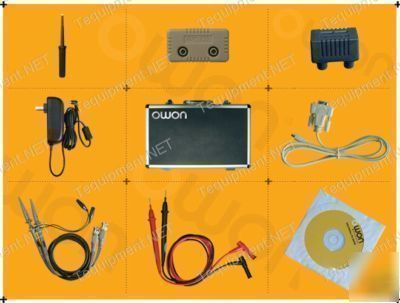

* 1 pair of 1:1(10:1) passive probe
* Current measurement extend module
* Small capacitance measurement module
* USB cable (RS232 optional)
Creative design of Silica gel key offer easy touching and friendly operation
Creative design of separate shortcut key simplified operation steps
USB Mass Storage Device Support Alternative Trigger Complete Video Trigger
Optimize Trigger Sensitivity Advance Whole Measure Precision
Handheld Digital Storage Oscilloscope & Multimeter - 20 MHz 2 Channel 100 MS/s Sample Rate
3.8 Inch color display with TFT panel (320X240 pixels)
Sample, Peak detect, Averaging
1M 2% in parallel with 20pF 5pF
5ns/div ~ 5s/div (step as 1~2.5~5)
5mV/div ~ 5V/div (Input to BNC)
Auto, Normal, Single, Alternate
DC coupling: CH1 and CH2: 1div(HDS1022M-N:DC~20M,HDS2062M-N: DC~60M)
AC coupling: CH1 and CH2: 1div (50Hz~Full bandwidth)
PK-PK, Averaging, RMS, Frequency, Cycle
100 ~ 240 V AC, 50-60Hz, CATII
DIGITAL MULTIMETER CHARACTERISTICS
DCV: 400mV,4V,40V,400V: (1% 1 digit)
ACV: 4V,40V,400V: (1% 3 digit)
DCA: 40mA, 400mA: (1.5% 1 digit) 10A: (5% 3 digit)
ACA: 40mA (1.5% 3digit) 400mA: (2% 1 digit) 10A: (5% 3 digit)
4k ,40k , 400k , 4M : (1% 1 digit)
51.2nF ~ 100uF: (3% 3 digit )
USB Mass Storage Device supports
Channel vertical displacement range
