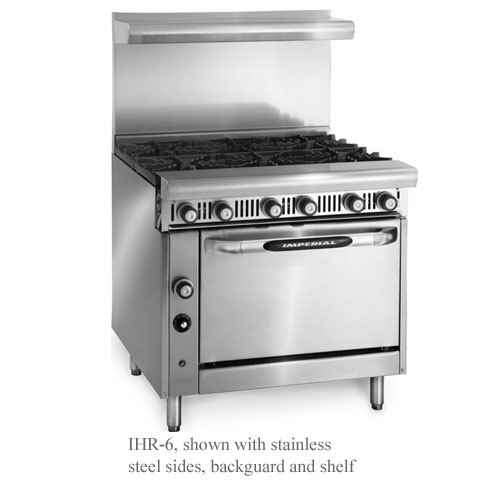

Imperial ihr-6-c range, 36" wide, 6 burners (35,000 btu
Range, 36" Wide, 6 Burners (35,000 BTU), Convection Oven, Diamond Series
Diamond Series Heavy Duty Range, gas, 6 open burners, standard depth, with convection oven base, 1-1/4" front manifold, stainless front & 6" high stub back, 6" high adjustable legs, 245,000 BTU
* Heavy Duty Range Features sleek European styling with wide radius ledge and
* optional high shelf, unique cast aluminum knobs featuring a vylox heat protection grip.
* Stainless steel front, oven door, control panel, landing ledge and kick plate.
* Large 7" stainless steel landing ledge.
* Enclosed front 1 1/4" manifold.
* Burners are 35,000 BTU/hr with a 7,000 BTU/hr. low simmer feature.
* One-piece venturi base has no gaskets. Venturi slopes to burner creating more efficient heating.
* All stainless steel pilot tubing and solid brass top burner valves.
* Wavy grates create more heat transfer than direct metal-to-metal contact. Heat convects in the waves for continual heat-to-pan action.
* Grates feature flame shaping center tube for more efficient heat transfer.
* Grates are 12" x 14" sections to easily lift off for cleaning.
* Anti-clogging shield designed in grate protects the pilot from grease and debris.
* Pots slide easily across sections and onto ledge.
* Chef Depth standard oven interior accommodates standard 18" x 26" sheet pans front-to-back and side-to-side.
* 100% safety pilot. Manual oven shut-off valve.
* Heavy duty thermostat with temperature range from 150F to 500F.
* Porcelainized side, rear and deck for better browning.
* Unique baffle above the burner distributes heat flow to provide even cooking temperatures throughout the 40,000 BTU/hr. (12 KW) oven.
* Stainless steel door liner optimizes heat retention.
* Safety valve tubing is stainless steel.
* Convection oven has 1/4 hp blower motor.
* Electronic ignition system with single solenoid valve. Direct spark-to-burner with flame rectification.
* Stainless steel door gasket.
* Three heavy duty locking chrome plated racks shall be included
