> Line tool 120 precision stage xy translation + rotation
Line tool 120 precision stage xy translation + rotation

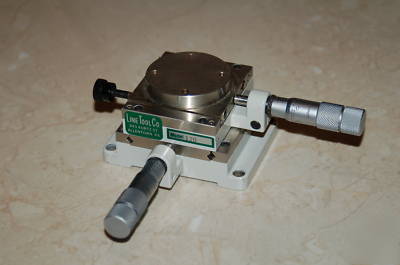

Line Tool Co. model 120 XY translation and partial rotation stage in excellent working and cosmetic condition. Looks practically new, with smooth, wobble-free movement and strong spring action.
For additional information, see Line Tool Co. website at the link below (model 120 is near bottom of the page)
http://www.linetool.net/olc/38626008/nos.htm
Also available, please contact:
Line Tool C-SP - XZ translation stage, 0.5" travel
Line Tool H-RH - heavy duty XYZ stage, 1" travel
and many other optomechanical parts
This model will produce movements in the X-Y planes and a partial rotary movement. The travel of the slides is 1/2 inch. The movement of the rotary platen is plus or minus 10 degrees for a total of 20 degrees travel. The rotary platen has four #6-32 tapped holes. The X and Y slides are micrometer fed and the rotary platen is moved by turning the adjusting knob. The rotary movement is not calibrated. Micrometer heads with .001 inch graduations or .01 mm graduations are available for this unit. Model 120 weighs 2 pounds 9 ounces.
