> Micromanipulator 6600 wafer prober 8" 150 mm
Micromanipulator 6600 wafer prober 8" 150 mm

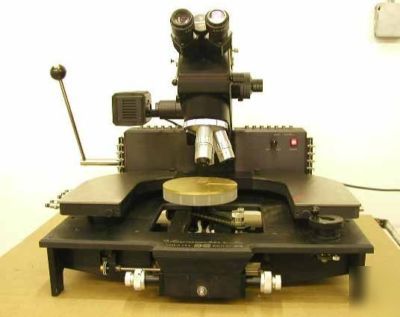

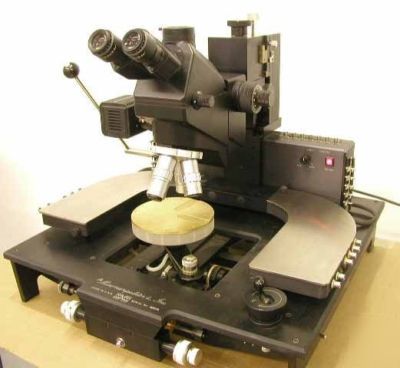

8"/150 mm Micromanipulator Wafer Prober / Probe Station
* It appears to be a Model 6600 based on catlog photos
* This prober can probe up to an 8"/150mm wafer. The X,Y stages move +/- 3" from center. The microscope has a separate X,Y stage with +/- 1" of travel. Thus the combined travel is +/- 4" or 8" total.
* Prober can be demo'd in our Salem, MA 01970 facility

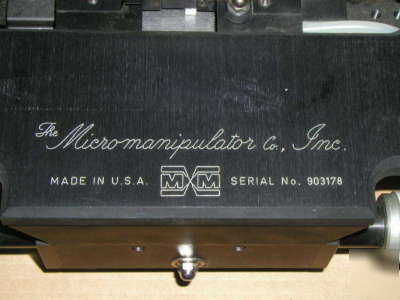

* S/N 903178 as shown in the photos
* All the stages move smoothly
* Some of the braided drive belts should be replaced.

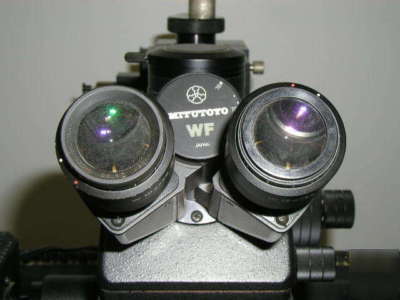

* Mitutoyo WF Zoom (1-2X) trinocular microscope head. This is an extremely high quality microscope

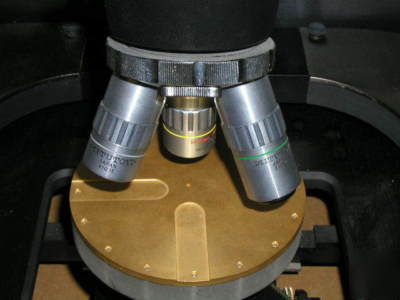

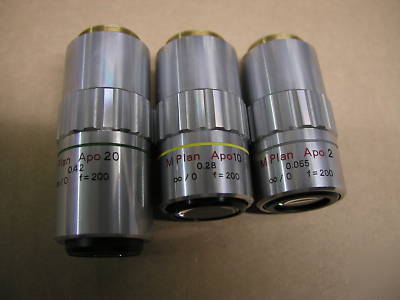

* 3 Mitutoyo objectives, 2X, 10X and 20X. All are M-PLAN APO objectives
* Wafer chuck is gold coated and is 6 inch/150 mm in diameter
* Unit is very clean and is cuurently in operation
* $30 fee to box. $30 Fee to band to a pallet
* We are unable to test the operation of the tool
* All sales are final with no right of return or exchange.
* Item must be paid for within 3 days or it will be relisted
