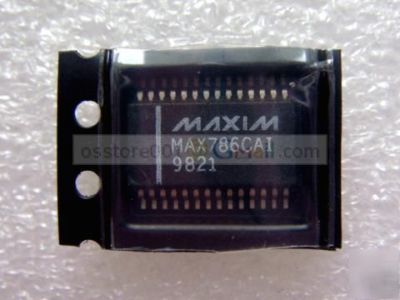

Maxim MAX786 MAX786CAI max 786R 786S 786 28PIN ssop ic
Brand New & Origianl Packing Maxim IC Chipsets
Model: MAX786 CAI (Default)
Remark: 1. Those chipsets are same as function & set.
The MAX786 is a system-engineered power-supply controller for notebook computers or similar battery-powered equipment. It provides two high-performance step-down (buck) pulse-width modulators (PWMs) for +3.3V and +5V. Other features include dual, low-dropout, micropower linear regulators for CMOS/RTC back-up, and two precision low-battery-detection comparators.
High efficiency (95% at 2A; greater than 80% at loads from 5mA to 3A) is achieved through synchronous rectification and PWM operation at heavy loads, and Idle Mode operation at light loads. The MAX786 uses physically small components, thanks to high operating frequencies (300kHz/200kHz) and a new current-mode PWM architecture that allows for output filter capacitors as small as 30 F per ampere of load. Line- and load-transient responses are terrific, with a high 60kHz unity-gain crossover frequency allowing output transients to be corrected within four or five clock cycles. Low system cost is achieved through a high level of integration and the use of low-cost, external N-channel MOSFETs.
Other features include low-noise, fixed-frequency PWM operation at moderate to heavy loads, and a synchronizable oscillator for noise-sensitive applications such as electromagnetic pen-based systems and communicating computers. The MAX786 is a monolithic, BiCMOS IC available in fine-pitch, surface-mount SSOP packages.
* Dual PWM Buck Controllers (+3.3V and +5V)
* Two Precision Comparators or Level Translators
* 420 A Quiescent Current, 70 A in Standby (linear regulators alive)
* 25 A Shutdown Current (+5V linear alive)
* 3.45V (High-Speed Pentium )
