> Leica MZ6 microscope microdip illumination & arm
Leica MZ6 microscope microdip illumination & arm
Leica MZ6 Microscope MicroDip Illumination & Arm
You are viewing a Leica MZ6 Microscope

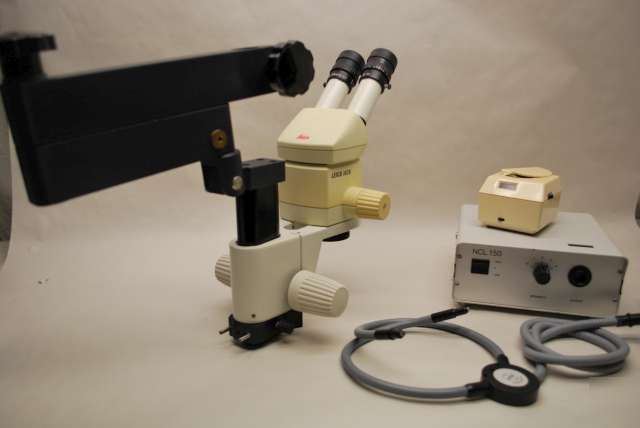

This machine comes with everything pictured, as set up. The microscope is small and easily maneuverable. Smooth, precise and intuitive controls provides the user with easy operation. Offering excellent positioning to facilitate a variety of configurations, this unit can be effectively used in a variety of procedures.
* 120V / .2A / 12W / 50-60Hz
* Powers on, dip (green) included
* Illumination: NCL150 with two hose lights, one tip is broken (shown) but should still light.
* Unable to test (no bulb)
* Fan starts and lights attach to microscope mount
* Two swivel points other than mount and also a tilt for the microscope
* Eye pieces Leica 10445111
* Scope has focus adjust and height adjust
ManufacturerDescription (link)
LEICA MS5 and LEICA MZ6 are composed of modules, which the user can configure himself. The basic instrument can always be combined with a wide range of accessories including discussion bridges, fluorescence and co-axial illuminators, brightfield/darkfield bases, drawing tubes and swing arm stands, etc.
* Ultra flat field of view, with resolutions up to 450 line-pairs/mm
* Infinity optical system assures fatigue free viewing
* Magnification changer; 6:1 zoom, 5 engageable positions for exact magnification reproducibility.
* Basic magnification range with 10x eyepieces; 6.3x - 40x, extended range 2x-320x.
* Field of view diameter range with 10x eyepieces; 4.2mm - 26.6mm, extended range 0.8mm - 104.2mm
* Basic working distance; 89mm, extended range 27mm - 297mm
* Patented antistatic material
* Widest range of ergonomic accessories
* Motor focus for repetitive tasks
* Achromatic, planachromatic and planapochromatic objectives
* 360 rotatable optics carrier
* Stereoscopic or vertical observation
* Fluorescence (GFP) illumination
* Leica IC A integrated video camera Leica DC 100 and DC 200 digital imaging systems
* Software for archiving and for image processing
* Complete interchangeability of accessories between other similar Leica stereomicroscopes
* More options and accessories than any other manufacturer
Title:Leica MZ6 Microscope MicroDip Illumination & Arm
