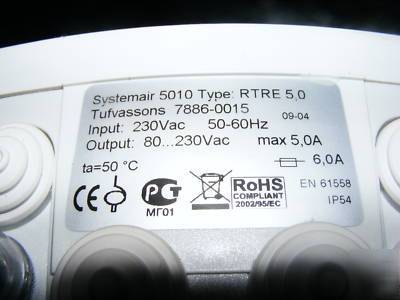

Systemair 5 rtre 5 transformer 5 stage switch rrp £180
Five-step transformer with manual adjustment (with protection).
Single-phase transformer, which controls the fan speed by changing the supply voltage (five stages). Speed switches manually handle on the case. There is a built-in safety device of the electric motor, which stops the voltage to the fan, when activated by a built-in thermal contact electric fan. The device is restarted by setting the handle to 0 for 10 seconds, after which you can resume work.
The device has input terminals for room thermostat RT, which stops the voltage at the fan, when an open circuit. These terminals are supplied from the factory closed.
The transformer has terminals 230 V to actuate the actuators for slonok and any other external equipment. These terminals de-energized when the button transformer exposed to 0 or if you have worked TK. Lamp indicator on the front panel shows when the transformer is in operation. When firing the fuse restarted manually, click on the case. Housing RTRE made of flame-retardant thermoplastic.
Size, mm (WxHxD) - 105h200h105
Output voltage for the handle of the regulator:
1-80 V, 2-105 V, 3-130 V, 4-160 V, 5-230 IN
If the handle is in one of the positions 1-5, then at the terminal voltage is 230 V.
If the built-in motor protection device is not involved, then the Clem TC put the jumper.
