3 ft. dia. x 1 ft. k-s rotary vacuum drum filter #6787
3 FT. DIA. X 1 FT. K-S ROTARY VACUUM DRUM FILTER - S/S - KNIFE DISCHARGE

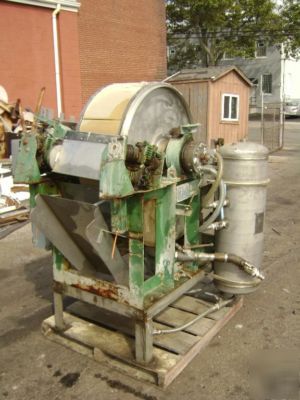

1 - used Komline Sanderson (K-S) Rotary Vacuum Drum Filter. Serial #UDF 104, Job #IS 45. Stainless steel construction. Drum is 3 ft. dia. x 1 ft. face. 9.4 sq. ft. of filtering area. Drum driven by a 3/60/220/440V, 1725 RPM UL listed Reeves Variable Speed Drive, approx. 1-2 HP (tag blank), gear ratio 71:1 into a 50:1 Excello Corp Cone Drive model SHU 25-5, model option 0824, serial #85062339-001, rating 1.01, input RPM 1725, SF 1. Stainless steel trough with rake agitator driven by a 1/4 HP motor. Adjustable knife discharge drive also variable speed. Approx. 18 in. wide (tapered down to 12 in. wide at the end) x 30 in. long stainless steel take off apron. Unit is mounted on base with approx. 13 in. dia. x 3 ft. t-t dished ended receiver tank rated full vacuum @ 100 deg. F, MDMT -20 F @ FV, serial #99105-01, (receiver) built 1999, part #B-03-3002. F.O.B. - LOCATION
