Yokogawa 7555 dmm multimeter 5.5 digit

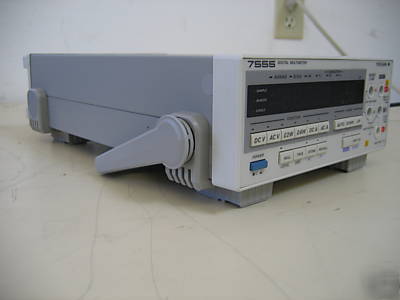

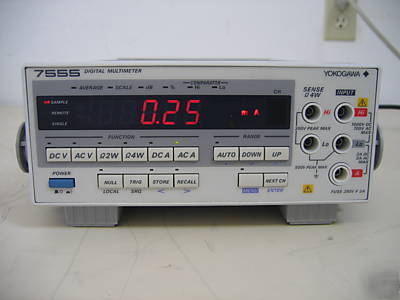

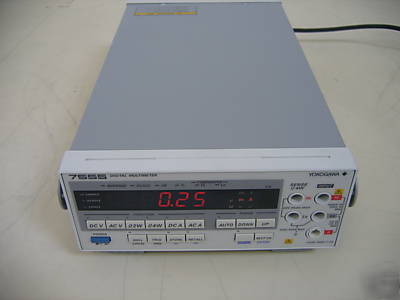

Yokogawa 7555 DMM, 5.5 Digit Multimeter
* Description: The Yokogawa 7555 Multimeter has a front panel which has been redesigned for improved operability, with enlarged keys that are fewer in number. Frequently-used measuring items can also be operated using one-touch key actions. Equipped with communications functions and offering additional functions, such as a simple scanner function and a BCD output function, the multimeter is applicable to system use, such as automatic measurement, not to speak of bench use. The multimeter s memory can store up to 2000 measured data items and ten types of setup information.
Features and specifications of the Yokogawa 7555 Multimeter include:
* 5 1/2-digit display "199999"
* High speed sampling 125 times/second

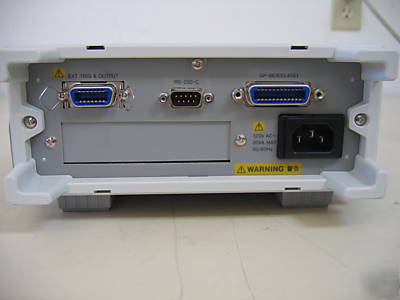

* Complete communication functions Standard provision of RS-232-C, and optional addition of GP-IB
* Large current measurement DC 200 A, AC 150 A (for current clamp use)
* Simple scanner for multiple point measurement (optional)
* BCD output & D/A output functions (optional)
* Measurement items: DCV, ACV, ohms2W, ohms4W, DCA, and ACA.
* Measures large currents up to 200 A. Current measurement using a current clamp (751106)
* Cosmetic Condition: Excellent
* Working Condition: Operationally verified good

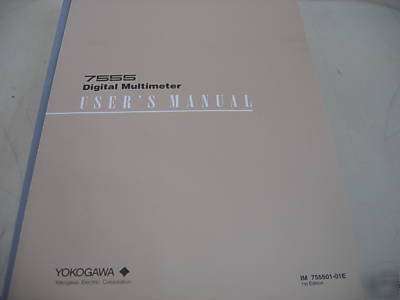

* Other Comments / Notes: This Yokogawa 7555 DMM will include the Operator's Manual, a Power cord and a standard set of Test Leads (not pictured).
* Warranty: 3-day DOA. (See below for further details)
