Uni-line M574-5208 piston damper actuator 4" stroke ser
Uni-Line M574-5208 Piston Damper Actuator 4" Stroke Ser

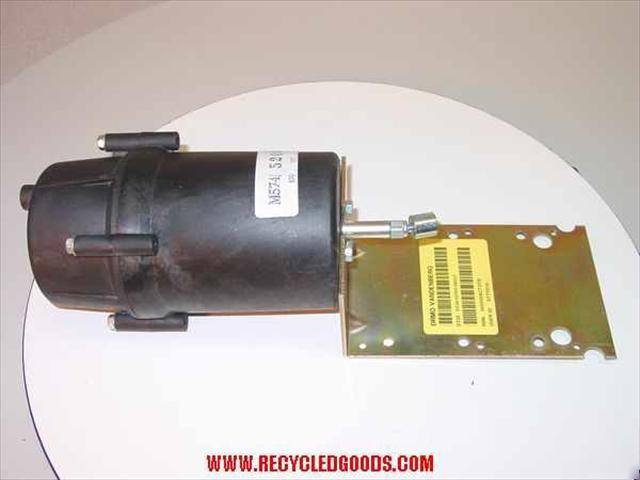

Uni-Line M574-5208 Piston Damper Actuator 4" Stroke Series 2474
The 2474 Piston Damper Actuator is used in pneumatic control systems to position automatic air dampers upon receipt of an air pressure signal from a control device. The piston actuator can be used for either a gradual or a positive action application.
Right angle without linkage
Effective piston area: 11sq. inch
Normal stroke: 4inch
Normal signal pressure: 0 to 20 psig
Maximum air pressure:30psig
Maximum damper air: 25sq. ft. gradula operation
(at 1000 FPM).....30 sq. ft. two position
Air consumption: 29 SCIM (positioner models)
Air connections: barbed nipple for 1/4" O.D. polyethylene
Ambient temperature rating: -20 degree to 140 degree F
