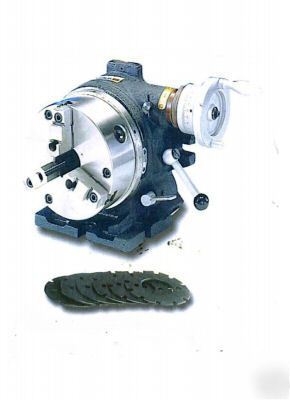

Vertex aisc-308 super spacer index w' 8" chuck 24 pos
VERTEX AISC-308 SUPER SPACER INDEX W' 8" CHUCK 24 POS MASK FLANGE
* INCLUDES ACCESSORIES PACKAGE
This index combines the advantages of the Super Index with those of a worm-geared index.
When mounted on a milling, boring, or other machine tool, it can carry out single-purpose indexing and indirect indexing using the worm-drive mechanism.
Disengaging the worm drive the 24-notch master plate permits 2, 3, 4, 6, 8, 12 and 24 dividing in the same manner as the Simple Index.
When the chuck is removed, the unit can be used as a horizontal and vertical type rotary table.
The operating handle to rotary table worm gear reduction ration is 1:90.
The operating handle collar is graduated in one minute, and readings down to ten seconds can be set on the vernier.
The Huge Bore allows you to shove pieces staight through the spindle and then work right up against the chuck!
8" 3 JAW CHUCK & ACCESSORIES PACKAGE INCLUDED
