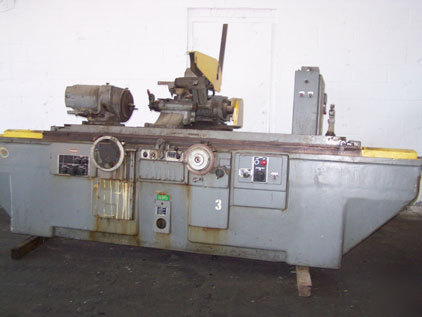

14" swg 60" cc brown & sharpe 1460U od grinder, swg dow
14" Swg 60" cc Brown & Sharpe 1460U OD GRINDER, Swg DOW
14" Swing 60" Centers Brown & Sharpe 1460U OD GRINDER, SWING DOWN I.D., HYD. TABLE, AUTO INFEED,
14" X 60" BROWN & SHARPE UNIVERSAL
MODEL: #1460U S/N: 521-1460-132 NEW: 1978
NOMINAL SWING ..................................... 14"
DISTANCE BETWEEN CENTERS, NOMINAL ................. 60"
DISTANCE BETWEEN CENTERS, MAXIMUM ............. 64-3/4"
SWIVEL TABLE, SCALES FOR ANGULAR SETTING ... 11 DEG. BACK
TAPER PER FOOT ............... 5" BACK
WHEELHEAD MOTOR .................................. 5 HP
WHEELHEAD SPINDLE SPEEDS (3) .... 1600, 2000 & 2400 RPM
WHEEL SIZE .......................... 14" X 1-1/2" X 5"
WHEELHEAD SWIVELS LEFT & RIGHT OF CENTER ...... 90 DEG.
WHEEL SPINDLE SWIVELS ......................... 90 DEG.
HEADSTOCK MOTOR ................................ 1/2 HP
HEADSTOCK SWIVELS ............................ 180 DEG.
INFINITELY VARIABLE SPINDLE SPEEDS ...... 25 TO 500 RPM
SPINDLE NOSE .................................... A2-6"
INFINITELY VARIABLE TABLE SPEED ........ 3" TO 150" IPM
TRAVEL PRE-REVOLUTION OF HANDWHEEL .......... 0.1" SLOW
DWELL @ TABLE REVERSAL ............ 0 TO 2-1/2" SECONDS
SWIVEL TABLE - TAPER PER FOOT ................. 5" BACK
- SCALES FOR ANGULAR SETTING 12 DEG. BACK
AUTOMATIC CROSS FEED, INF. VARIABLE ... 0.0001" - .003"
POSITIVE STOP SETTING ........................ 0.00002"
HAND FEED PER REV. OF HANDWHEEL ............. 0.1" SLOW
APPROXIMATE MACHINE WEIGHT .................. 9,700 LBS
APPROXIMATE DIMENSIONS ............ 135"L X 77"D X 61"H
SWING DOWN I.D. GRINDING ATTACHMENT w/I.D. SPINDLE
-AUTOMATIC INFEED .... POWER CROSSFEED ADJUSTABLE TO
POSITIVE CROSSFEED STOP ADJUSTABLE WITHIN 0.000020"
RIGHT OR LEFT END WHEEL MOUNTING
DOUBLE SWIVEL WHEELHEAD - SWIVELLING @ WHEEL
SPINDLE HEAD OR @ THE WHEEL SLIDE PERMITS ANY
COMPOUND SETTING REQUIRED IN COMBINATION
DUAL DEAD/LIVE HEADSTOCK SPINDLE
PRESENTLY WIRED FOR 3/60/440 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
** VERY GOOD CONDITION & APPEARANCE **
