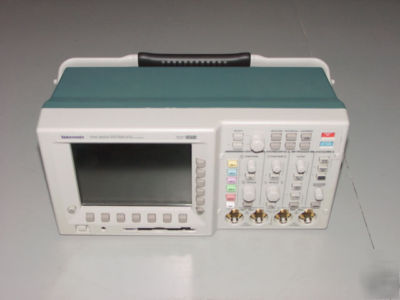

Tektronix TDS3054 500 mhz 5 gs/s dpo oscilloscope
Tektronix TDS3054 500 MHz 5 GS/s DPO Oscilloscope
The TDS 3000 oscilloscopes are the lowest priced, most portable Digital Phosphor Oscilloscopes (DPOs). Now every design engineer and technician can take advantage of the tremendous benefits of DPOs. DPOs deliver a new level of insight that makes dealing with complex signals simple. DPOs display, store, and analyze, in real-time three dimensions of signal information: amplitude, time, and distribution of amplitude over time.
This system has the following specifications:
* Sample Rate on Each Channel: 5 GS/s
* Maximum Record Length: 10K points
* Vertical Resolution: 9-bits
* Vertical Sensitivity (/div): 1 mV-10 V
* Vertical Accuracy: +/- 2 %
* Max Input Voltage (1 megaohm): 150V RMS CAT I
* Input Impedance Selections: 1 megaohm in parallel with 13 pF, or 50 Ohm
* Range (/div): 1 ns - 10 s/div
* Display Monitor: Color LCD
This unit has the following modules or options installed:
* TDS3TRG = Advanced Trigger Module
