Meiji ML9200 petrographic polarizing pol microscope

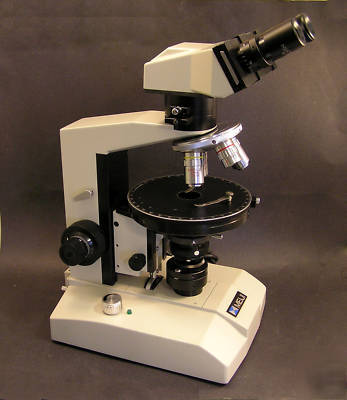

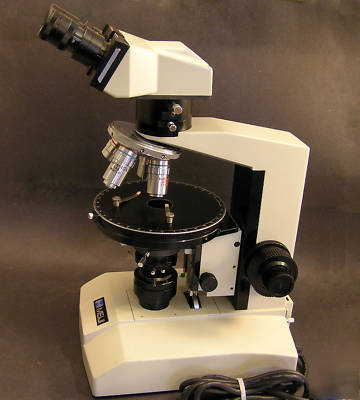

Meiji ML9200 Petrographic Polarizing Pol Microscope with accessory plates and case

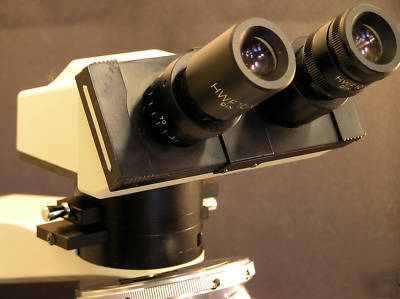

* HWF 10X DIN eyepieces, one with with crosshair reticle, helical focusing and barrel pin

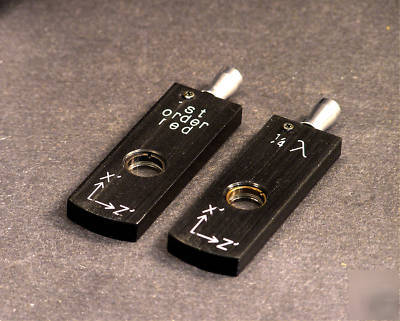

* two Meiji compensator wave plates: 1/4 wave and whole wave

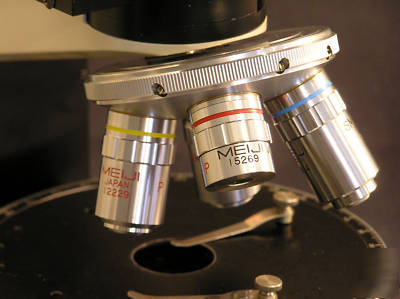

* Four-place nose turret with three centerable objective holes, and four Meiji strain-free pol objectives:
SMPlan 4X 0.1 160/0.17; SMPlan 10X 0.25 160/0.17; SMPlan 20X/0.40 160/0.17 w/spring tip; and SMPlan 40X 0.65 160/0.17 w/spring tip.
* large rotary stage with slide clips and brake lever

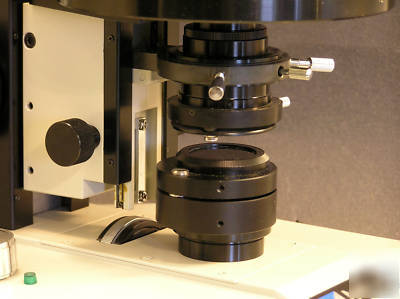

* centerable ACH 1.25 n.a. condenser, with iris and swing-out filter holder (no filter is included)
* swing-out polarizer filter over the field lens
* 30 watt halogen lamp in removable holder, controlled by a rotary brightness knob; requires North American 115 voltage and plug

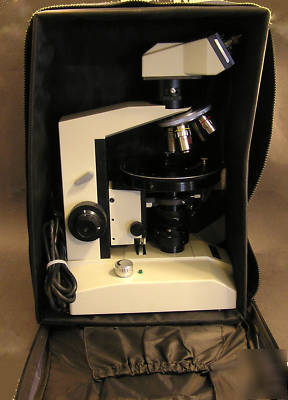

* vinyl dust cover, printer copy of ML9200 instructions for use, and a new padded nylon zipper case
The objectives are in excellent condition with very slight signs of use. The microscope works very well and all movements are smooth, except the side lever to limit stage travel has a soft stop. The stand has an excellent clean finish with only a few small marks, and a very good stage surface. I don't have centering wrenches for it, but small screwdrivers can also be used. This microscope is in fine operating condition, ready for all levels of work. I will warrant that when this microscope leaves my shop, it is complete, clean, adjusted, tested, and functioning as described.
