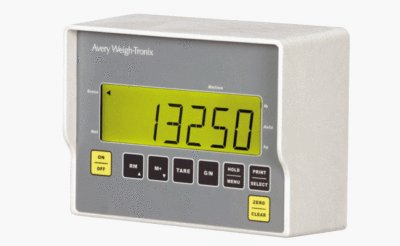

avery weigh-tronix 640M scale indicator
This item has never been used, but has been removed from original packaging. Pricing starts retail at $675 for the 640M ! !
The 640 Series includes three easily programmable high performance models - the 640 for a wide variety of general applications, the 640XL with the industry's largest 2" display and the miniature 640M that is 72% smaller and ideal for places where space is limited such as in a truck or tractor cab. 640 Series indicators come with a 3-year factory warranty and pricing starts at $675.
The 640 Series offers the indication of gross and net weights along with a tare function that allows for the temporary zeroing of a scale - all at the push of a button. The 640 Series also offers one of the largest backlit LCD displays available (1.1" for the 640 and 640M and 2" for the 640XL). The bright green-yellow display features 10 adjustable brightness levels for optimal viewing in environments with poor visibility or from extended distances.
Collecting data reports is also made easy. Standard G/T/N printouts are available for transfer to a computer, printer or transfer data system with the optional RS-232 bi-directional serial port. Additional reports list the total accumulation, count and average of each channel for easy analysis of data needed for the following applications:
Applications. The 640 Series indicators are a flexible and ideal solution for integration with a wide variety of agribusiness weighing equipment, including:
* Total Mix Ration (TMR) mixers
* Weigh carts or seed tenders
Features. Many built-in features make the 640 indicators particularly easy to install and use.
* Features a robust, seamless polycarbonate enclosure with a sealed back panel that resists moisture and dust
* Hold mode maintains a constant weight when moving mobile equipment or when the scale is turned off
* Motion filtering device settles down the weight display, ideal for mixers and livestock applications
* Auto-LOC function locks and holds livestock weights on the display regardless of excess movement or vibration
* Power recovery system secures all recorded statistics and automatically turns the indicator back on once power is restored
* Operates reliably from -20 to 140 F (-20 to 60 C)
Options. The 640 and 640XL plug directly into weigh bars or load cells without the use of a junction box. Users looking for a completely wireless solution may include the RF option with their Avery Weigh-Tronix 640, 640XL or 640M indicator. The RF option provides full remote control - convenient for all weather conditions - that can be installed, for example, inside a front end loader or in a feed room.
Power 10 - 17 VDC 12 VDC @ 55mA - four w/b, no backlight 12 VDC @ 270 mA - four w/b, backlight Optional: 115 VAC/12 VDC converter
Enclosure Water and dust resistant, structural polycarbonate 5.5" H x 7.25" W x 3.9" D
Display 6 digit LCD, 14 segment 1.1" (28 mm) green-yellow backlight, ten adjustable brightness levels
Display Rate Selectable 1, 2, or 5 times/second
Excitation Analog Range 5 volts, drives ten 350 ohm weigh bars +/- 8 mV/V
Capacity Range 999,999 lb/kg decimal down to 2 places
Increment Sizes Multiples and sub-multiples of 1, 2, and 5 (.01 up to 500)
Internal Resolution 64,424,509 counts per mV/V per second
