Dental milling machine mx-7 electric, usa company
PLEASE CALL US FOR MORE DETAILS +1 (***)-544-0317 ( Office hours 9-5pm EST, after hours leave a message and we will get back to you in the next business day)
The MX-7 "Electric" is our best selling
Stent/Surgical Template drilling capacity
In accordance with our engineering concept of manufacturing equipment that can be upgraded, we are pleased to introduce the MX-7 which is the first major upgrade of our MX-5 that was introduced in 1994.
We have re-engineered and added a split arm that enhances the overall fluid movement of the Motor-Arm i.e., there is one additional pivot point. The jointed articulated design also significantly assists in the.
1. Positioning of the Motor/Cutting-Tool over the area to be milled.
2. Alignment of the arms at an ideal angle that facilitates fluid graceful movement.
3. Rapid Setting/Adjusting the vertical height of the motor/arm.
The primary reason to select the Electric Motor MX-7 would be "brute power", our Electric Motor has the power to mill cases that require extensive metal removal i.e., Implant/Denture bars, etc. Our electric motor has high torque from 5,000 to 20,000 RPM.
Additionally with the ever increasing use of implants comes a need to drill precision holes in predetermined locations at exacting angles in Stents & Surgical Templates.
The MX-7 (Electric) features a powerful motor that produces high torque at low RPM that prevents the plastic (stent /surgical template) from overheating and causing inaccurate hole size. The motor comes with collets that allow it to accept friction grip, lab-handpiece, 3mm, and Ferraro burs (collets provide greater accuracy than 3 jaw chuck).
Additional reasons would be the ease that you can perform "On the fly milling" i.e., raising and lowering the motor/bur as you are milling side to side, facilitating simultaneous vertical/horizontal milling, this allows you to mill a shelf/shoulder that follows the contour of the gum line.
The Air and Electric motor arm assembly are interchangeable and can be purchased separate, allowing the user to switch between the two.
The MX-7 can be up-graded with the same accessories as the Da Vinci or Omega.

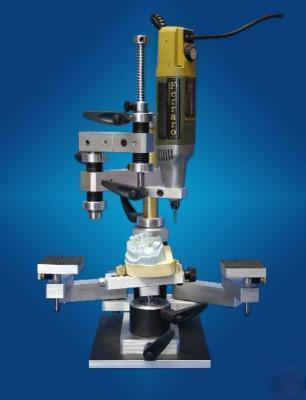

The MX-7 shown above has the Precision X-Y Table installed.
Up-grading to dual milling mode allow traditional milling on the master model or with the Round Surveyor Table installed, "Analogue (transfer) Model Milling".
Dual Articulated hand - rest allow your hand to remain supported as you track the movement of the motor (handpiece).
* Manufactured and serviced in the USA
* Custom (Made to Order) capability
* Re-Tooling and Machining capability
* Up-Grading and Retro-Fitting
A. Lock/Loosen lever: allows model/platform to rotate 360 degrees
B. Lock/Loosen lever: allows model to be tilted and locked at desired angle
C. Lock/loosen knob: locks model on tilt platform
I. Vertical Adjustment: Motor Arm Depth Stop
K. Lock/loosen lever: to raise or lower all arms
M. Lock/Loosen rotation of primary arm
** Please note that this item is a special order item and allow 3-5 business days to process it.
