Watkins johnson 980758-001 card or 978769-001 board wj

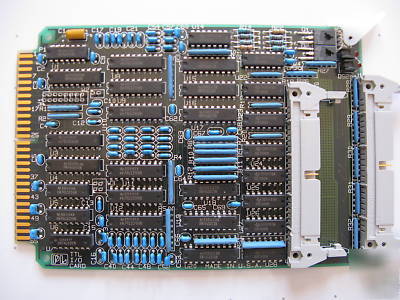

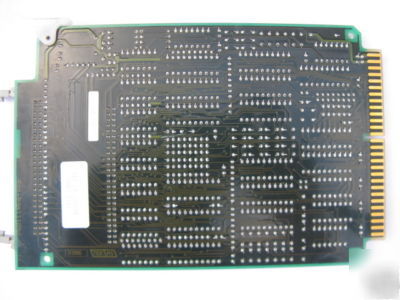

This is the INPUT/OUTPUT card for the WJ 996 handler card cage. It it configurable to use as the STANDARD I/O card or the INDEXER I/O card. The standard card allows the CPU card to monitor sensorsand is cabled to the OPTO I/O Bboards 1 & 2. The INDEXER I/O card provides communication from the CPU card to the overflow indexer. Will included the board jumper configurator for this card, just changing a umper from W1 on the card configures this card for either application.
This card is in 2 slots in the WJ-996 handler cardcage.
The card is WJ part number 980758-001 for the standard card configuration, this card is 978769-001 for the indexer card configuration.
This is a new original WJ card, not refurbished or second source.
This is the new version of this card for model 3.45 and later. All fuses are new and tested good.
-A hard copy of both card configurations showing the jumper settings
-A hard copy of the handler drawer showing the card cage exploded view
The standard I/O card allows the CPU card to monitor sensors, and control actuators in the handler. See
Figure 4-2. The standard I/O card also provides a communication link to the CVD System Programmable Logic Controller (PLC). All inputs and outputs are optically coupled. The standard I/O card is cabled directly to the Opto I/O boards by 50-pin ribbon cables. The cable labeled INPUT runs from connector J1 on the I/O card to Opto I/O board #2 (2BD). The cable labeled OUTPUT runs from connector J2 on the I/O card to Opto I/O board #1 (1BD).
The Indexer I/O card provides parallel communication from the CPU card to the overflow indexer. 5 bits of I/O are used for addressing, 8 bits are used for passing data, and 3 bits
are used for control functions. An indexer interface board mounted on the perforated screen on the bottom of the handler frame rearranges I/O to meet the indexer's data transfer specification. The indexer I/O card is the same as the Standard I/O Card, with the exception of address jumper configuration at W1 .
Standard I/O Card Configuration
The Standard I/O card and the Indexer I/O card are the same card with the exception of jumper configuration. Both cards are jumpered alike at W4 and W5 . The addresses jumper location ( W1 ), however, is configured differently
Indexer I/O Card Configuration
The Indexer I/O card and the Standard I/O card are the same card with the exception of
jumper configuration. Both cards are jumpered alike at W4 and W5 . The addresses jumper location ( W1 ), however, is configured differently
This card from WJ is $1.037.00 at current price book:
