Afl noyes ofl 250 sm otdr w/ vfl pm OFL250 ofl-250
* Interchangeable SC Connector For Source
* Interchangeable 2.5mm Connector For Meter
* Interchangeable 2.5mm Connector For VFL
* Noyes Trace-01 OTDR Trace Analysis Software w/ Manual
* OFL 250 Quick Reference Guide

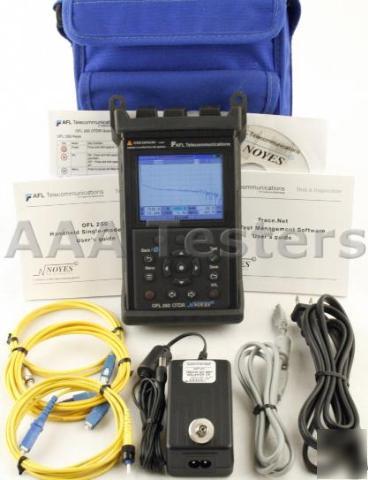

AFL NOYES OFL 250 SingleMode 1310nm 1550nm OTDR w/ VFL & Power Meter
Complete Accessories & Carrying Case Included!
This Unit Is In Excellent Physical & Working Condition!
OFL250 Handheld, Fault-Locating OTDR
The Noyes OFL 250 from Fujikura Europe Ltd is a single-mode OTDR with an integrated Optical Power Meter (OPM), Laser Source (OLS), and Visual Fault Locator (VFL) in a handheld package weighing only 0.8 kg (1.7 lb). With short dead zone and mid-range dynamic range performance, the OFL 250 is ideal for testing optical fibers in service provider metro areas and FTTx networks.
The OFL 250 provides automatic and manual setup, precision event analysis, multiple-wavelength testing, a 12-hour battery life, internal data storage, and USB connectivity. OTDR and OPM test ports are equipped with tool-free adapters, which can be changed in seconds.
Results are saved as industry standard .SOR files, which can be transferred to a PC for viewing, printing, and analyzing with the supplied Windows compatible software..
* Multiple-wavelength single-mode OTDR
* 1.5 m (typ.) event dead zone
* Integrated OPM, OLS, and VFL (650 nm)
* Tool-free, switchable adapters for OTDR & OPM ports (FC, SC, ST, LC, E2000 are available)
* Bellcore (GR-196) .SOR file format
* Rechargeable (> 12 hr) LiIon battery or AC power
* 3.5-inch, indoor/outdoor LCD
* Windows compatible software to view, print, and archive test record
* Mini USB Port (connect to PC with cable)
* Locate cable cuts, open or high-loss splices, fiber bends, and high-loss/high-reflectance connections
* Measure optical power (OPM port)
* Short-range fault-location (VFL port)
* Trace fibers and measure end-to-end loss at 1550 nm (working with a Noyes optical power meter or light source)
* Identify fibers (working with a Noyes optical fiber identifier)
5, 10, 30, 100, 300 ns, 1, 3, 10 s
(1 + 0.005% x distance + data point spacing)
Internal memory (>1000 traces)
Full Auto, End Locate, Expert, Live
Optical Power Meter Specificatios
Optical Light Source Specificatios
Laser, Class 1 (FDA 21 CFR 1040.10 and 1040.11, and IEC 60825-1)
Compatible with Noyes Optical Power Meters &Light Sources
Class 1 (FDA 21 CFR 1040.10 and 1040.11, IEC60825-1:1994, IEC 825-1:1993 )
190 x 112 x 47 mm (7.5 x 4.4 x 1.9 inches)
-10 to +50 C, 0 to 95% RH (non-condensing)
-20 to +60 C, 0 to 95% RH (non-condensing)
Rechargeable LiIon or AC adapter
LCD, 320 x 240, 3.5 inch (89 mm) , color, transflective
Switchable. See website or contact AFL for available adapter types.
