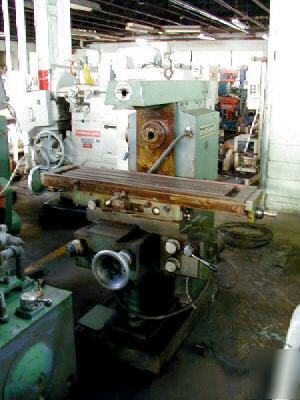

#1000 south-bend "sturdimill" univ horiz mill #19466
#1000 SOUTH-BEND "STURDIMILL" UNIVERSAL
Serial No 0140148, Model 1000, Series "STURDIMILL"
Universal Swiveling Table (45-Degree +/-)
Table Dimensions (Overall), W x L....... 10.5" x 45"
Table Longitudinal Travel (X-Axis)...... 28"
Saddle In-Out Cross Travel (Z-Axis)..... 11"
Knee Vertical Travel (Y-Axis)........... 17"
(12) Spindle Speeds, Range.............. 35 to 1200 RPM
(9) Longitudinal Feeds, Range........... 0.9 to 19 IPM
Power Rapid Traverse, Longitudinal...... 72 IPM
Spindle Motor, Horsepower............... 4 HP
Feed Motor, Horsepower.................. 3/4 HP
PRICE: F.O.B. OUR WAREHOUSE............ $500.00
