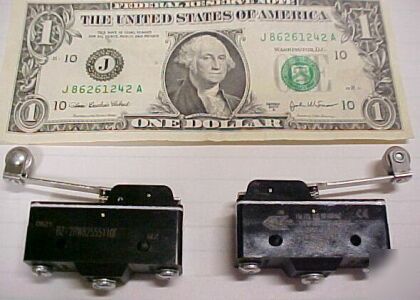

2 honeywell microswitch micro switch, sealed stainless
The moisture can't stop you now, so start wiring all those industrial items around your bathtub and swimming pool. These great little switches are UL listed, and rated for a full 15A at 125V, 250V and 480V. Motor rated for 1/8 HP at 125VAC, or 1/4 HP at 250VAC. Operating force is 3.5 oz. maximum; release force is .75 oz minimum; pretravel is .468 maximum; differential travel is .004" to .040;" Overtravel is .156" maximum. The actuator arm is made of (non-magnetic) stainless steel and the roller is made from sintered stainless steel (roller attracts a magnet).
Single Pole Double Throw Circuitry, 15 A at 125 Vac, Roller Lever Actuator, 0,97 N [3.5 oz] Maximum Operating Force, Silver Contacts, Screw Termination, CE, CSA, DEMKO, UL
- Accepted world-wide standard "Large Basic" switch
- Low operating force and differential travel
- Long mechanical life up to 20,000,000 cycles at 95% survival
- Elongated mounting hole for easier, more accurate mounting
MICRO SWITCH BZ Series standard basic switches are used for simple or precision on/off application needs.
Switch Type: MICRO SWITCH Standard 25,4 mm H x 17,8 mm W x 50,8 mm L [1.0 in H x 0.7 in W x 2.0 in L]
Operating Temperature Range: -55C to 85C [-67F to 185F]
Actuator Length: 48,26 mm [1.9 in]
Operating Force (O.F.): 0,97 N [3.5 oz] max.
Release Force (R.F.): 0,21 N [0.75 oz] min.
Overtravel (O.T.) : 3,96 mm [0.156 in] min.
Differential Travel (D.T.): 0,10 mm - 1,00 mm [0.004 in - 0.040 in]
Operating Position (O.P.): 30,17 mm 0,76 mm [1.188 in 0.030 in]
Free Position (F.P.): 36,47 mm [1.436 in] max.
Housing Material: General Purpose Phenolic
High Temperature: 204 C [400 F]
Agency Approvals and Standards: 1054
Mounting Screw Size: 3,53 mm [0.139 in]
Mounting Centers: 25,4 mm [1 in]
Maximum Tightening Torque: 0,33 N m [3.0 in lb]
Package Height: 24,1 mm [0.95 in]
Package Width: 17,5 mm [0.69 in]
Package Length: 49,3 mm [1.94 in]
Recommended For: Dustproof and splash resistant seal
UNSPSC Commodity: 30211905 Snap switches
