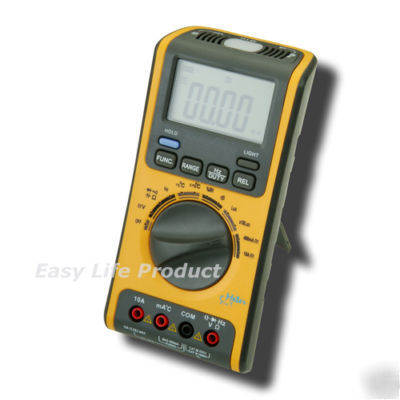

5IN1 digital multimeter thermometer lux sound meter B0
This 5 in 1 multifunction meter (EA-19) combines Multimeter, Sound Level Meter, Luxmeter, Thermometer and Hygrometer into one unit. Moreover, EA-19 has 14 functions with 39 measuring ranges. With novel design and functionality, EA-19 was granted iF product design award in Hannover, Germany.
As a Mulitmeter, EA-19 measures DC & AC Current and Voltage, Resistance, Capacitance, Frequency, Diode and Continuity Test. EA-19 also measures Sound Level (dB), Illuminance (Lux), Temperature ( C) and Relative Humidity (RH). The meter also has functions of Data Hold, Over range protection, Backlight LCD display and Auto Power Off.
EA-19 is an ideal tool in schools, laboratories, industries and home applications.
* 5 in 1 meter: Multimeter, Sound Level Meter, Luxmeter, Thermometer and Hygrometer
* Including 14 functions with 39 Auto and Manual ranges
* Measuring DC & AC Current and Voltage, Resistance, Capacitance, Frequency, Diode and Continuity Test.
* Measuring Sound Level (dB), Illuminance (Lux), Temperature ( C) and Relative Humidity (RH)
* Over range protection for all ranges
* Large LCD display with backlight
* Data hold, Low power indication, Auto Power off
Circumstance Temperature: 23 C (73.4 F)
(0.7 % of reading + 2 digits)
(1.0 % of reading + 2 digits)
Maximum input voltage: 600 V DC or 600 V rms AC
(0.8 % of reading + 3 digits)
(1.5 % of reading + 5 digits)
(1.2 % of reading + 3 digits)
(2.0 % of reading + 10 digits)
Maximum Input Current: mA Jack: 400 mA, 10 A Jack: 10 A
(3.0 % of reading + 10 digits)
(2.0 % of reading + 5 digits)
Overload Protection: 250 V DC or rms AC
(8.0 % of reading + 10 digits)
(1.0 % of reading + 3 digits)
(2.0 % of reading + 3 digits)
Overload Protection: F 500 mA / 250 V fuse (quick acting)
Operating Temperature: 0 ~ 40 C
45% R.H. 90% R.H. 10 minutes.
90 % R.H. 45% R.H. 15 minutes.
3.5 dB at 94 dB, 1 kHz sine wave
Typical Instrument Frequency Range: 100 ~ 10000 Hz
(5.0 % of reading + 10 digits) at color temperature 2850 K calibrated to standard incandescent lamp at color temperature 2856 K
Display: read approximate forward voltage of diode
Forward DC current approximate 1 mA Reversed DC Voltage approximate 1.5 V Overload protection: 250 V DC or rms AC
The buzzer will sound if resistance is lower than 40
* 14 functions with 39 ranges
* Maximum Voltage between Terminals and Earth Ground: 600 V DC or rms AC
* Operating Altitude: 2000 Metres (7000 feet) maximum
* Maximum shown value: 3999 counts max
* Polarity indication: "-" indicates negative polarity
* Over range indication: Display '0L' or '-0L'
* Sample Time: approximately 0.4 second
* Unit showing: showing of function and electrical capacity
* Auto power off time: 15 minutes
* Fuse Protection: F 500 mA / 250 V (quick acting)
* Temperature Factor: < 0.1 x Accuracy / C
* Operating Temperature: 0 ~ 40 C (32 ~ 104 F)
* Storage Temperature: -10 ~ 50 C (14 ~ 122 F)
* Power Supply: 9 V PP3 Battery (included)
* Dimension: approx. 178 (L) x 85 (W) x 40 (H) mm (7.01' x 3.35' x 1.57' inch)
* Weight: approx. 320g (batteries included)
