> Honeywell MS4105A1002 two-position spst actuator MS4105

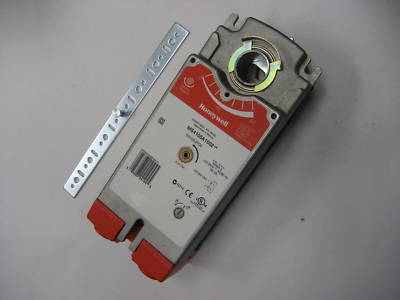

Honeywell MS4105A1002 two-position spst actuator MS4105
Two-position, SPST Actuator - 44 lb-in, Spring Return , 120 Vac +/-10%, 60 Hz
Brushless DC submotor with electronic stall protection for floating/modulating models.
Brush DC submotor with electronic stall protection for 2-position models.
Self-centering shaft adapter (shaft coupling) for wide range of shaft sizes.
Access cover to facilitate connectivity.
Metal housing with built-in mechanical end limits.
Spring return direction field-selectable.
Shaft position indicator and scale.
Manual winding capability with locking function.
UL (cUL) listed and CE compliant.
All models are plenum-rated per UL873.
Direct Coupled, General Purpose, Spring Return Actuator
Spring Return Torque/Force (lb-in., lbf)
Spring Return Torque/Force (Nm, N)
Mechanically limited 5 degree increments
Timing, Maximum Spring Return (sec)
9.72 in high x 3.94 in wide x 2.95 in deep
247 mm high x 100 mm wide x 75 mm deep
3/8 to 1.06 in. round or 3/8 to 11/16 in. square
10 to 27 mm round or 10 to 18 mm square
Aluminum housing, Plenum rated plastic access cover
Enclosed screw terminal strip (22 to 14 AWG)
Maximum Noise Rating, Holding (dB(A) @ 1m)
Mounting bracket, self-centering shaft adapter, 3mm crank
Integral 1/2 in. NPSM conduit connection.
