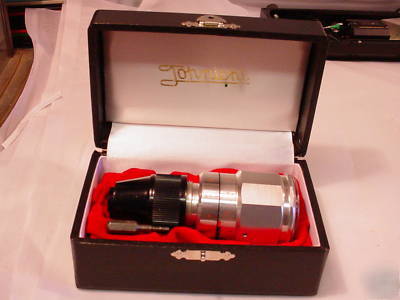

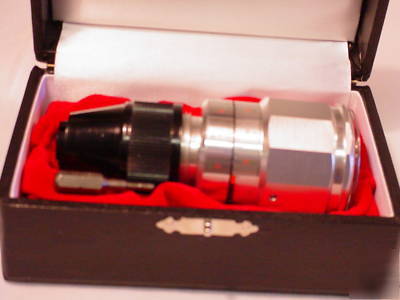

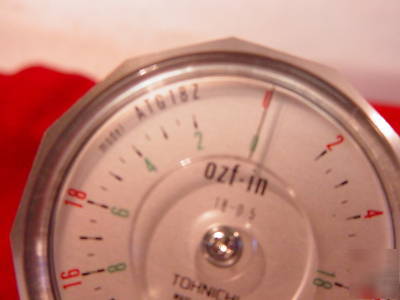

Tohnichi torque gauge ATG18Z ozf-in - barely used

Below is the information I could find on the web:
* Suitable for fine torque measurements required in inspection, research and assembly of small parts, such as precision instruments, electronic products.
* Available for measuring rotating objects.

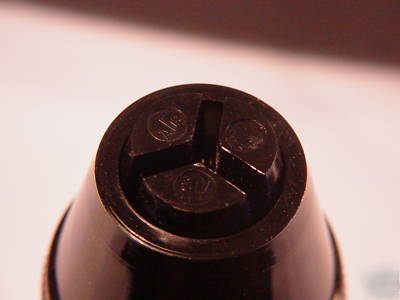

* ATG, BTG models have a three-jaw chuck which firmly grasp object.

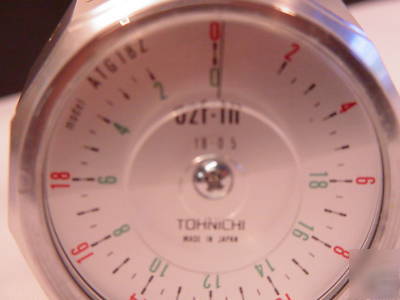

* The dial graduations turn by 270 degree each for the left and right, and overload protection is built in.

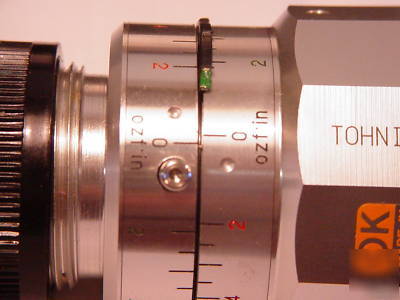

* Graduation and memory pointer are on the body. That gives easy reading from any position.
* Main body and chuck are locked when pushing "push lock button". Push lock button makes body and chuck secured while using chuck.
For measurement of micro torque and calibration of tools. Torque Range: Min-Max: 2-18 in.oz, Graduation: .05 in.oz, Overall Length: 3 7/8", Outside Diameter: 1 23/32", Chuck Grip: approx. 3/64 - 1/4", Approximate Weight: 6 3/8 oz.
Features: Bi-directional Keyless Chuck 270 degree dial graduation Engrave graduation on body Accuracy +/- 2% Plastic Chuck Manual can be found here: Specifications: Torque Range: 2-18 in.-oz. Overall Length (in.): 3-7/8" Outside Diameter (in.): 1-23/32" Chuck Grip (in.): 3/64" - 1/4" Weight (approx) (oz.): 6.375 oz.
Please E mail me with any questions you may have.
Be sure to add me to your favorites list!
