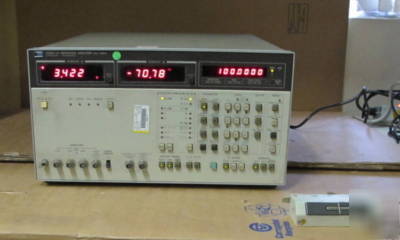

Hp 4192A lf impedance analalyser 5HZ-13MHZ
Agilent Technologies 4192A Impedance Analyzer
The 4192A LF impedance analyzer performs both networking analysis and impedance analysis on devices such as telecommunication filters, audio/video electronic circuits, and basic electronic components. Both floating and grounded devices can be tested.
Frequency Range: 5 Hz to 13 MHz
Freq. Step: 5 Hz 10 kHz - 1 mHz;
Measure Mode: Spot/manual or Automatic sweep
Oscillator Level: 5 mV to 1.1 Vrms, up to 1 mVrms resolution
B-A: 0 to 100dB (*1), up to 0.001 dB resolution
Phase: -180 to +180 , resolution 0.01
A, B,: +0.8 to -100 dBV (*1), +13.8 to -87 dBm (*1), resolution: 0.001 dB
Amplitude-Phase: 0.02 to 0.09 dB, 0.1 to 0.2
0 to 35 V, 10 mV step, sweepable
