Hallicrafters sr-150 operating & service manual

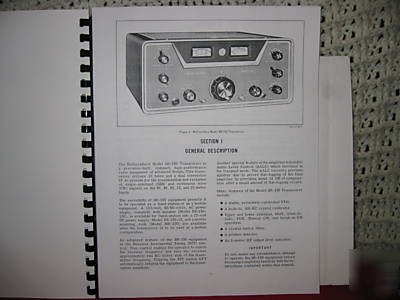

This is a very nice clean comb-bound REPRINT of the Operating And Service Instructions manual for the SR-150 transceiver. Subjects covered include:
Function Of Operating Controls
Theory Of Operation, including a block diagram
Service Data, including voltage and resistance charts for each tube pin
Alignment Procedure, with top & bottom chassis photos with arrows indicating the alignment points

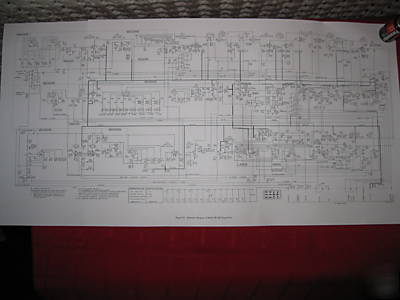

Two 11x17" facing fold-out schematics
AC Power Supply Model PS-150-20 Manual
DC Power Supply Model PS-150-12 Manual
Mobile Mounting Rack Model MR-150 Manual
The front and back covers are protected by clear sheets. First class postage is $3.00 in the USA. Airmail to most countries is $6. Canada is $4.
