> Atmel AT91SAM7S256 arm ARM7 header dev. board jtag usb
Atmel AT91SAM7S256 arm ARM7 header dev. board jtag usb

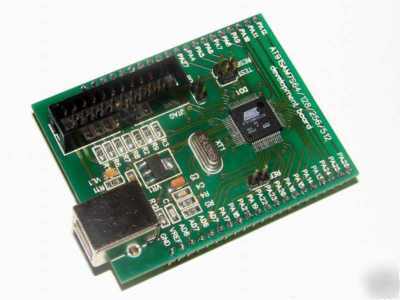

Click for view in large resolution AT91SAM7S-HB: top side
Click for view in large resolution AT91SAM7S-HB: bottom side
Click for view in large resolution AT91SAM7S-HB with ARM JTAG programmer/debugger
AT91SAM7S-HB development board with ATMEL ARM7 AT91SAM7S256-AU-001 MCU
Header board for microcontrollers AT91SAM7S64/128/256/512 ARM7TDMI-S - the universal board enabling easily and quickly to start to work with ATMEL ARM7 microcontrollers.
* MCU: AT91SAM7S256-AU-001 16/32 bit ARM7TDMI with 256K Bytes Program Flash,64K Bytes RAM, USB 2.0, RTT, 10 bit ADC 384 ksps, 2x UARTs, TWI (I2C), SPI, 3x 32bit TIMERS, 4x PWM, SSC, WDT, PDC (DMA) for all peripherals, up to 60MHz operation
* Fully supported by wide range of ARM JTAG programmers/debuggers/emulators
* perfect solution for building custom USB peripherials
* standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
* VREF jumper for select ADC reference voltage
* TEST jumper, for SAM-BA downloading
* on board voltage regulator 3.3V with up to 800mA current
* single power supply: through USB or from extension header pin
* power supply filtering capacitor
* extension headers for all uC ports + ADC ports, RESET and power supply
* High quality PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print on top side
