Hobby electronic prototype kit - LF351 op amp (#1660)
Hobby Electronic Prototype Kit - LF351 Op Amp (#1660)

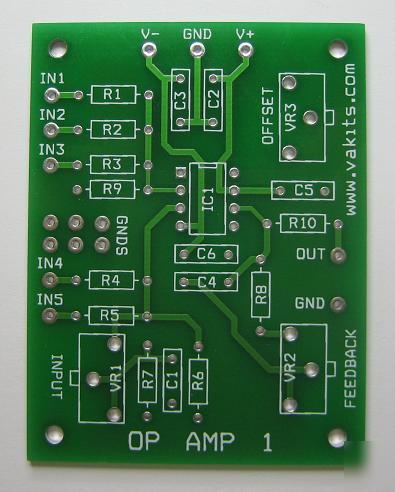

This is the Op Amp Prototype Development PCB & LF351 IC Design Kit #1. It includes a double-sided PCB designed by us to help in your Single Op Amp circuit experiments along with a couple of the LF351 BiFET Op Amps in DIP-8 package. This PCB has been developed so that you can build a wide variety of circuits.
It has provisions for Dual power supplies with bypass capacitors but you can jumper the minus power supply to Ground for single power supplies circuits.
It includes a potentiometer for Offset on pins 1 & 5 with pin 8 not connected. This PCB can be used with ANY standard Op Amp such as the LM741, TL071, LF351, OP27, and many more.
There are a ton of designs that you can build. Just populate the parts that you need for an incredilble array of circuits. Use this as a Prototype Development Board to design your circuits or use it in the actual project.
This kit also includes different values of 1/4 Watt Leaded Resistors, NPN & PNP Transistors, Aluminum & Ceramic & Tantalum Capacitors, Signal & Power & Zener Diodes, LEDs, Trimpots, an Electret Microphone, a miniature Speaker, Pushbutton Switches, an IC Socket, and more. It also includes some Electronic Hardware so that you can interface your circuits to the outside world. With these parts, you can make numerous circuits such as active filters, pre-amps, signal conditioners, function generators, and much more. Search the web for incredible circuits to build. The Datasheets and Application Notes for the ICs and Transistors, along with hundreds of others, are located at Datasheets. We supply the parts, you supply the ingenuity. You get the following:
Op Amp PCB, NightFire, FR-4, .062", Double-Sided
8-Pin, DIP, Low-Profile, Solder Tabs
2N4401, NPN, GP Switch/Amplifier, TO-92
2N4403, PNP, GP Switch/Amplifier, TO-92
1N4001, 100V, 1 Amp, Silicon, Power
1N4007, 1000V, 1 Amp, Silicon, Power
240 Ohms, 1/2 Watt, 5%, Carbon Film
301 Ohms, 1/4 Watt, 1%, Carbon Film
432 Ohms, 1/4 Watt, 1%, Carbon Film
4.7K, 1/2 Watt, 5%, Carbon Film
11K, 1/4 Watt, 5%, Carbon Film
15K, 1/4 Watt, 5%, Carbon Film
20K, 1/4 Watt, 5%, Carbon Film
30K, 1/4 Watt, 5%, Carbon Film
47K, 1/4 Watt, 5%, Carbon Film
69.8K, 1/4 Watt, 1%, Carbon Film
133K, 1/4 Watt, 1%, Carbon Film
240K, 1/2 Watt, 5%, Carbon Film
300K, 1/4 Watt, 5%, Carbon Film
374K, 1/4 Watt, 1%, Carbon Film
402K, 1/4 Watt, 1%, Carbon Film
620K, 1/4 Watt, 5%, Carbon Film
1.0M, 1/4 Watt, 5%, Carbon Film
2.2M, 1/4 Watt, 5%, Carbon Film
3.0M, 1/2 Watt, 5%, Carbon Film
4.7M, 1/4 Watt, 5%, Carbon Film
5.1M, 1/4 Watt, 5%, Carbon Film
6.2M, 1/4 Watt, 5%, Carbon Film
9.1M, 1/4 Watt, 5%, Carbon Film
10M, 1/4 Watt, 5%, Carbon Film
22M, 1/4 Watt, 5%, Carbon Film
1000pF, 50v, NPO, Ceramic Disc
5000pF, 50v, X5F, Ceramic Disc
.022uF, 50v, X7R, Ceramic Disc
1.0uF, 50v, 85 C, Aluminum, Radial
4.7uF, 50v, 85 C, Aluminum, Radial
5.6uF, 35v, 85 C, Aluminum, Radial
6.8uF, 35v, 85 C, Aluminum, Radial
12uF, 63v, 105 C, Aluminum, Radial
22uF, 16v, 85 C, Aluminum, Radial
33uF, 10v, 105 C, Aluminum, Radial
47uF, 25v, 85 C, Aluminum, Radial
68uF, 35v, 85 C, Aluminum, Radial
100uF, 25v, 105 C, Aluminum, Radial
150uF, 16v, 85 C, Aluminum, Radial
220uF, 16v, 85 C, Aluminum, Radial
330uF, 10v, 85 C, Aluminum, Radial
1K, Single-Turn, Thru-Hole, PCB Mount
2K, Single-Turn, Thru-Hole, PCB Mount
5K, Single-turn, Thru-Hole, PCB Mount
10K, Single-turn, Thru-Hole, PCB Mount
20K, Single-turn, Thru-Hole, PCB Mount
50K, Single-turn, Thru-Hole, PCB Mount
Bi-Color Red & Green, Diffused, Rectangular
Red, Diffused, T 1 3/4, Thru-Hole
Green, Diffused, T 1 3/4, Thru-Hole
Yellow, Diffused, T 1 3/4, Thru-Hole
300 milliAmps, 250V, TR250-145U-2, Raychem
Male, 8-pin .100" Centers, Square Post, Breakable
Female, 8-pin .100" Centers, Square Post, Breakable
Electret, Dual band, Panasonic WY-64MNT315
8 Ohms, .1 Watt, Miniature, Round
