Studer model rhu 400 universal cylindrical grinder

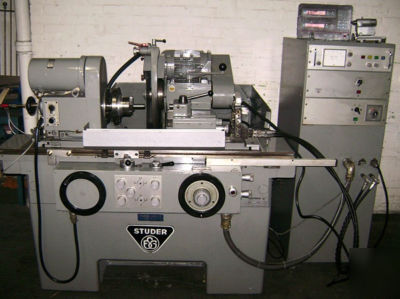

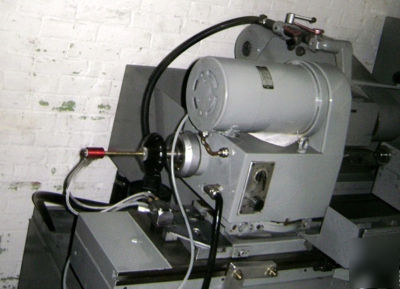

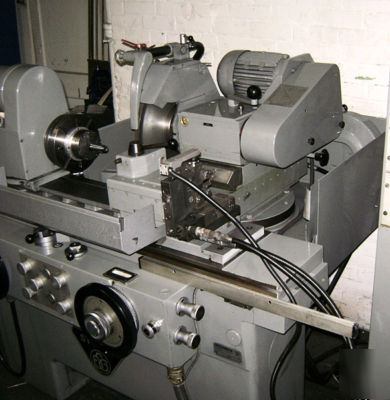

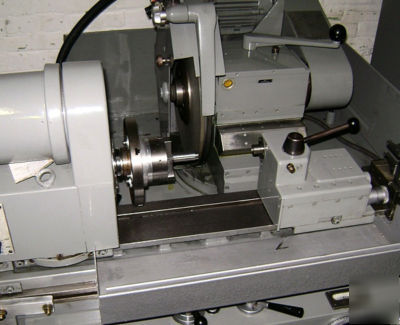

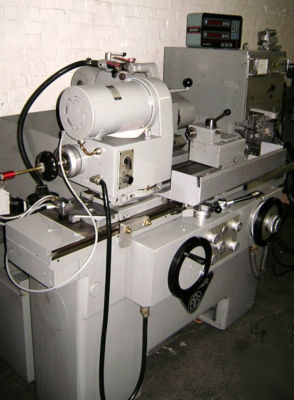

Studer Model RHU 400 Universal Cylindrical Grinder
referencing Studer Model RHU 400 Universal Cylindrical Grinder
Studer Model RHU 400 Universal Cylindrical Grinder
Technical Specifications: * Item #6971-430
* Center height: 4.92"/6.89"
* Distance between centers: 15.75"
* Maximum ground length at 30 angular approach = 9.06"
* Table speed: 16-18 ft./min.
* Minimum reverse stroke: .059"
* Work head speed range: @ 4.92" center height: 30 - 675 RPM / @ 6.89" center height: 20 - 450 RPM
* Taper in spindle nose: # 5MT
* Speed of grinding wheel at 16": 1500/1625/1800 RPM
* Speed of grinding wheel at 12": 2000/2200/2420 RPM
* Estimated weight: 4000 lbs.
* Overall dimensions: 107.5"(L) x 53" (W)
EQUIPPED WITH: * Pneumatic 3-jaw chuck
Contact Cliff Davis at 401.724.3200 during normal business hours (EST) or email ****@goldmachinery.com referencing 6971-430.
