Beamex® pg-series of calibration transmitter pumps

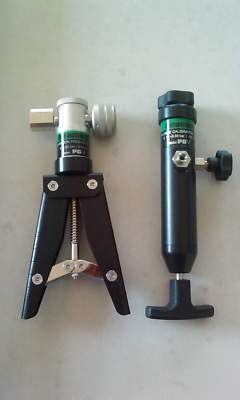

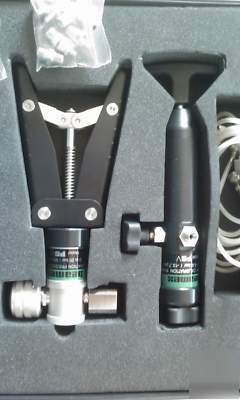

Beamex PG-Series of Calibration Pumps
This pump is hand held, light weight and doubles as both a pressure and vacuum sources for field use. Each pump is equipped with a micro-metering control verneer for fine adjustment and vent valve.
Calibration Pressure Pump PGM:
* Output pressure: 0 ... 20 bar / 0 ... 300 psi
* Fine adjustment: with adjustable volume control
* Connectors: 1/4" poly-flow tubing or 1/4" plastic tube
* Dimensions: 220 mm / 8.66" (h), 100 mm / 3.94" (w)
The PGV is a new highly efficient vacuum pump generating vacuum quickly using a pulling action. The extensive volume control provides fine adjustment of generated vacuum. The compact, sturdy and lightweight construction is designed for use in tough field environments.
Pressure Calibration Pump, PGV:
* Output pressure: 0...-0.95 bar / 0...-13.7 psi
* Outlet connector: G 1/8 male 60 int. cone
- length, min 230 mm 9.06
- length, max 322 mm 12.68
- T-tubing set with connectors

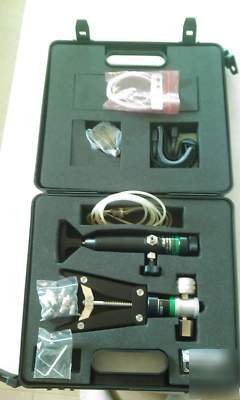

PGV Kit, including PGM Pump and Vacuum Pump, carrying case, and spare
