Numatics mark 3 spa 3 series valve 03AS7020 24VDC solen

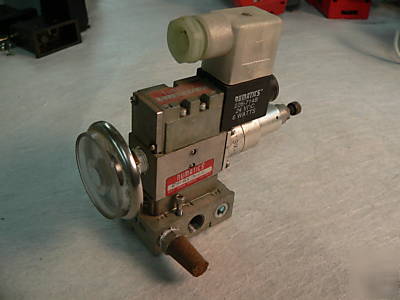

Numatics Mark 3 SPA 3 Series Valve
2-position 4 way, 1/8" NPT ports, standard base with speed control, Din plug in 24vdc solenoid. 160 psi pressure gauge.
Link to Mfr's webpage: http:// /applications/products/valves/mk3.aspx
The Mark 3 Series offers high flow in a miniature valve design. The Mark 3 line is available with 10-32 or 1/8 porting in either sub-base or manifold mounting, sandwich speed control and sandwich pressure regulators.
* Port Sizes: 1/8 NPTF & G, 10-32, M5
* Flow Capacity: 8.34 to 16.21 SCFM @ 80 PSIG / 177 to 345 NI/m @ 6 bar
* Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
* Pilot Pressure Range: 20 to 100 PSIG / 2 Position Detented 15 to 100 PSIG
* Temperature Range (Ambient): -10 F to +115 F (-23 C to +46 C) / Air Pilot +200 F (+93 C)
* Direct solenoid, air pilot or solenoid air pilot actuated
* DIN plug-in solenoid with indicator light
* Integral speed control available
* Integral regulators available
