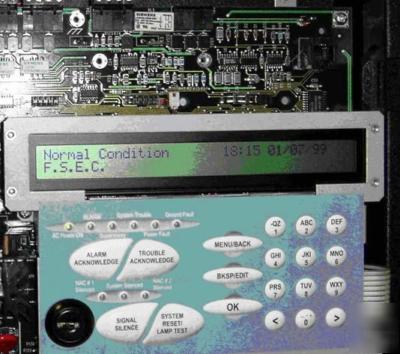

Gamewell-fci 7100-2UD addressable fire alarm panel
removed from service for upgrade
panel is a 2 loop 394 point panel
and this panel has dact biult in
Description Fire Alarm Control Panel
The Gamewell-FCI 7100 Series fire alarm control panel is a
multi processor-based, analog addressable system. The
control panel is a compact, yet expandable, platform.
Intended for commercial, industrial and institutional installations,
the 7100 Series is ideal for life safety and property
protection fire alarm applications.
The basic 7100 Series control panel provides one (1) or
two (2), analog addressable Signaling Line Circuits (SLCs).
Each SLC supports up to ninety-nine (99) analog addressable
sensors, as well as up to ninety-eight (98) addressable
monitor modules and/or control points. With 197
addresses available on the 7100-1 and 394 addresses
available on the 7100-2. The 7100 uses an advanced protocol
that ensures an almost instant response to events
while at the same time suppressing nuisance alarms.
The system may be programmed with either the
Windows -based Field Configuration Program (FCP-7100)
or configured through a comprehensive set of intuitive,
secure password protected front-panel programming
options. This important feature allows the system to quickly
adapt to any future requirements due to changes in occupancies,
building remodels, or other contingencies.
The sophisticated circuitry and powerful analog software
enables the 7100 Series fire alarm control panel to read the
specific sensitivity level of each sensor and compensate for
changes due to age, dust accumulation or other environmental
factors. The 7100 incorporates the Gamewell-FCI
Listed Integrated Sensitivity Testing (LIST) which meets
NFPA 72 sensitivity testing and maintenance requirements.
The LIST testing allows substantial savings in both maintenance
and service while eliminating nuisance alarms.
The Model 7100-1D and 2D features an integral Digital
Alarm Communicator Transmitter (DACT) with all popular
transmission formats and a 16-digit telephone number
field. It is 8-digit Carrier Information Code (CIC) compliant
and also prevents dialer-runaway in the event of intermittent
system faults. The 7100-1D and 2D are UL Listed for
Microsoft Word is a registered trademark of Microsoft Corporation.
Listed per ANSI/UL 864 9th Edition
120 or 240 VAC (optional) input line voltage
Front panel programming with day/night sensitivity
80-character alpha-numeric display
One or two Style 4 (Class B ) signaling line circuits.
Style 6 (Class A ) with optional CAOM Module
Two Style Y (Class B ) regulated notification appliance
circuits rated for 1.5 amp each. Style Z (Class A ) with
Suitable for pre-action deluge applications with optional
Individual sensor drift compensation
Dual-stage maintenance alerts ( dirty and very dirty )
Multilevel sensor sensitivity adjustments (front panel
S1869 7165-1703:105 (7100 Non-High Rise)
7270-1703:117 (7100 High Rise)
