3/16" asc national 6 duel head auto riveting system

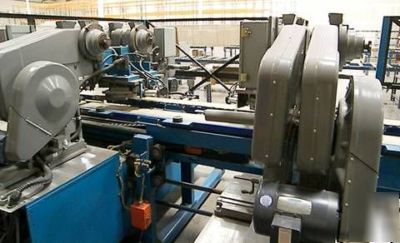

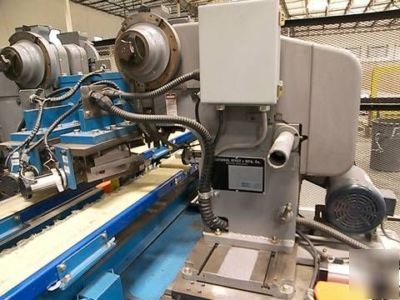

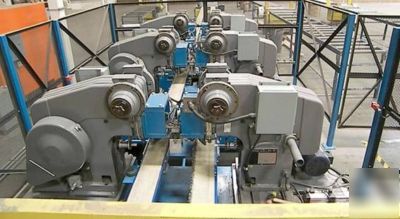

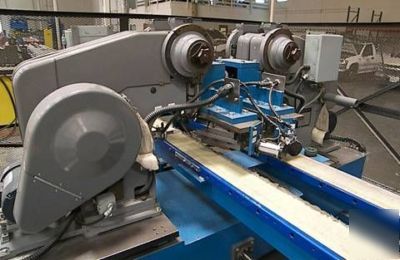

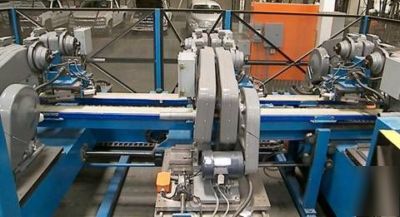

ONE Preowned ASC NATIONAL 6 Duel Head Automatic Riveting System
MDL. 2600B, S/N 431-435, MFG 2004
CAPACITY .. .. 3/16
NUMBER OF HEADS .. 6 (DUAL HEAD)
RIVET DIAMETER 3/16"
MAX. RIVET LENGTH . 5/8"
THROAT . 8"
STROKE . 1 7/8"
ADJUSTABLE CENTERS 3/8"- 8"
HOPPER DIAMETER ... 7"
MACHINE DIMENSIONS (L X W X H) .. 15' X 8' X 72"
ENTRY CONVEYOR DIMENSIONS (L X W X H) ... 28' X 36" X 40"
WEIGHT .. 6,000 LBS.
MOTOR ... HP
SERVO DRIVEN BALL SCREWS FOR (4) DUAL HEAD MACHINE POSITIONING
POWERED ENTRY CONVEYOR WITH AIR LIFT VERTICAL POSITIONING
BARRIER GUARD FENCE SURROUNDING MACHINE
PRICE: ON SITE, (RANCHO DOMINGUEZ, CA) . ... . $12,500.00
