Allen bradley 1794-IF4I /a 1794IF4I flex analog input
Rockwell Automation > PLC & HMI > I/O Products > Flex & Flex Ex > 1794-IF4I/A
Allen-Bradley 1794-IF4I Flex I/O Analog Input Module, 16 Bit, 4 Isolated Inputs, Series A
4 Isolated inputs; Input data format: 2 s complement, 2 s complement percent, binary, offset binary; Signal Range: 4-20mA, 0-20mA, 20mA, 10V, 0-10V, 5V, 0-5V; Input Conversion Rate: 2.5/5.0/7.5ms on all channels; Input Resolution: 16 bits - Unipolar, 15 bits + sign - Bipolar, 0.320mA/Cnt - Unipolar, 0.640mA/Cnt - Bipolar, 0.156mV/Cnt - Unipolar, 0.313mV/Cnt - Bipolar; External DC PS Nominal Current: 80mA @ 24V DC; Each channel of the 1797-IF4I is individually configurable for the desired input range.
The Allen-Bradley 1794-IF4I is used with 2-, 3-, and 4-wire Input Sensor field devices. Terminal Base Units: 1794-TB3, 1794-TB2, 1794-TB3S, 1794-TB3T, 1794-TB3TS, 1794-TBN.

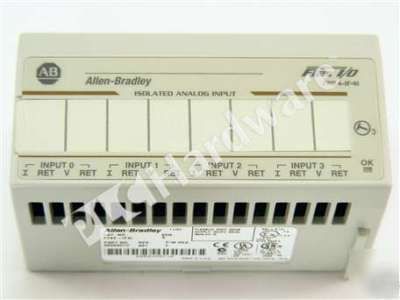

One Allen Bradley 1794-IF4I Series A, Flex I/O Analog Input Module, 16 Bit, 4 Isolated Inputs, in excellent working and cosmetic condition.
The unit is Series A, Cat. Rev. A01, F/W Rev. F, Manufactured in 11/03.
