Tektronix 7B53A swp plugin for 7000 series oscilloscope

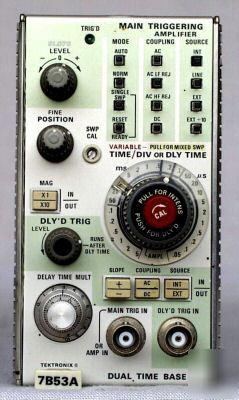

7B53A DUAL TIMEBASE PLUGIN FOR 7000 SERIES OSCILLOSCOPES
7B53A Dual Time Base Plugin, compatible with ALL 7000 Series mainframes. This time base will trigger to 100MHz and has normal, intensified delaying, delayed, and mixed sweep modes. Delaying sweep speeds are 50 ns to 5 s/div in 25 steps (calibrated) and at least 2.5 times the calibrated sweep rate, continuously variable between steps (uncalibrated). Other very useful functions are X10 MAG, INT. and EXT. (main & delayed) trigger inputs, single sweep, front-panel Cal and fine/coarse position controls. The unit is recommended for use with all 7000 series mainframes. Can also be used with 11000 series and DSA digitizers with slight modification.
