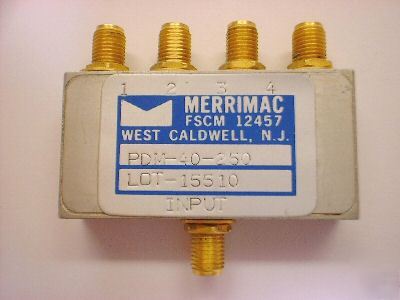

Merrimac pdm-40-250 0 deg. 4 way power divider
The PDM-40-250 covers a range of 10 MHz to 500 MHz. Input power is 2W max.
Isolation is 25 dB min (20 dB Typical); Phase Balance is 4 deg. max (2 deg Typical); Insertion loss is 1.25, (0.8 Typical); Amplitude Balance is 0.4 max (0.2 Typical). VSWR is 1.5:1 max. (IN) and 1.3:1 max. (OUT). SMA Connectors.
