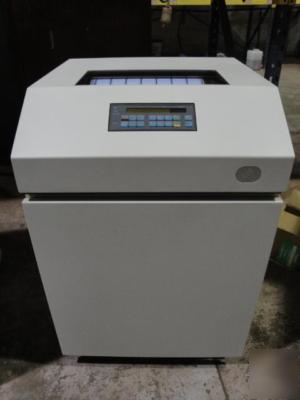

Ibm 6400I - 008 line matrix printer network capable
* IBM 6400i Series Line Matrix Printer *
* High-quality, line matrix printing at speeds up to 500, 1000 or 1500 lpm, depending on model

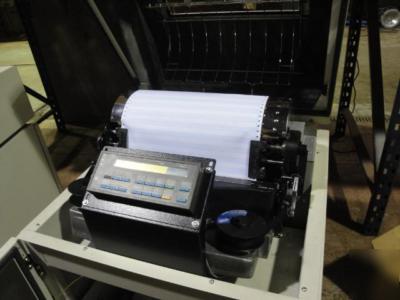

* Pedestal design maximizes forms access and minimizes floor space required
* Cabinet design provides acoustic levels quieter than many laser printers
* Wide range of attachment capabilities
* Full IBM IPDS support, Code V and IGP support
* Integrated network support
* 6400 Printer Management Utility
In today's rapidly changing business environment, one of the few constants is the requirement for reliable, cost-effective, high-volume printing. The IBM 6400 family is a feature-rich suite of impact printers, specifically designed for high- volume printing environments. The printers are also versatile, providing a variety of emulations and options for attaching to virtually any IBM or non-IBM system.
The IBM 6400 family is available in two configurations - an open pedestal or an enclosed cabinet. The open pedestal design minimizes floor space requirements and maximizes access to forms. The enclosed cabinet models provide acoustic levels quieter than many laser printers, making them suitable for nearly all business environments.

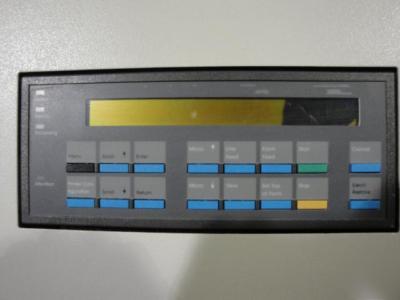

User-Friendly Operator Panel
The IBM 6400 printer family comes complete with an 80-character display that lets you verify the operational status of the printer in one of seven different languages. This display is complemented by quick-entry command keys that are color-coded to simplify operation.
The IBM 6400 family offers a variety of system attachments and printer emulations, allowing it to serve a wide range of computing environments. This provides flexibility during initial installation as well as helping to provide investment protection for the future.
Remote Management Capabilities
Using the 6400 Printer Management Utility, you can easily manage the IBM 6400 family. This utility provides the ability to access multiple printers remotely from a single database, download software and printer settings from a host computer, and use a virtual operator panel to configure printers. In addition, the optional IBM printer management suite, Infoprint Manager, now supports the 6400 printer family.
Each IBM 6400 printer is capable of printing advanced graphics and bar codes using a variety of graphic features, such as Intelligent Printer Data Stream (IPDS), Code V and IGP.
* Reliable printing at up to 500, 1000 or 1500 lpm, depending on model
* Open pedestal configuration minimizes floor space requirements and maximizes access to forms
* Enclosed cabinet configuration provides acoustic levels quieter than many laser printers
* Easy-to-use operator panel with an 80-character display
* Label stock and up to six-part forms capabilities
* Wide variety of system attachments
* Management capabilities provided by 6400 Printer Management Utility
* Multiple graphics options, including IBM IPDS, IGP and Code V emulation features (both Printronix versions)
* Supported by Infoprint Manager
* Certified by the U.S. Postal Service
* Designed for easy installation

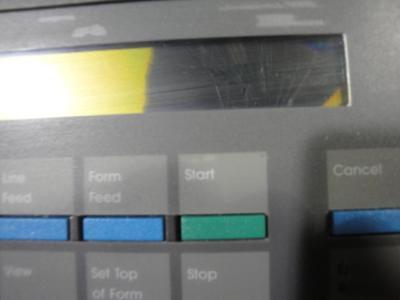

This unit has a crack in the LCD display, it does still work, and doesn't appear to effect actual use when compared to the other unit we have that does not have a cracked display.
IBM 6400 Printers at a glance
Vertical spacing-3, 4, 6 or 8 lines per inch, or as selected by host
Horizontal spacing-10, 12, 13.3, 15, 16.7, 18 or 20 characters per inch

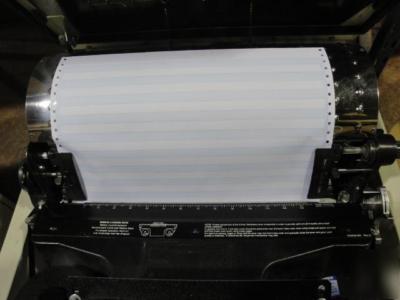

Continuous form width: 3" to 17" (with tear strips) (7.6 cm to 43.2 cm); when using rear exit, the maximum is 16 inches
Continuous form length: 3" to 24" (7.6 cm to 61 cm)
Horizontal and vertical fine-scale forms adjustments
Dual-position lid to allow quick access to forms or stacking of forms
View function for print verification
Code V and IGP Printronix Emulation
Printronix P-Series and P-Series XQ Variant
Twinaxial IPDS: IBM 4234-008, 4234-012
Twinaxial non-IPDS: IBM 4234-002, 5225-001, or 5225-004
Coaxial IPDS: IBM 4234-007, 4234-011
Coaxial non-IPDS: IBM 4234-001 or 3287-001
System AttachmentsStandard (ASCII)
AS/400 using the ASCII Workstation Controller port on 9402(except Model Y10), 9404 and 9406
3197, 3477, 3486/87/88 Terminals (parallel port only)
3174 Controller (Asynchronous Emulation Adapter)
ES/9370TM using the ASCII Subsystem
Micro Channel 370 using ASCII serial or parallel port
RISC System/6000 using ASCII serial or parallel port
LAN Connections to Token-Ring and Ethernet via the Network Print Server feature
IBM PCs or PS/2 s using the ASCII serial or parallel port
IBM-compatible PCs using the ASCII serial or parallel port
Non-IBM Systems using the ASCII serial or parallel port
Optional (Twinaxial, Coaxial)
AS/400 using the Twinaxial Workstation port on models 9402, 9404 and 9406Advanced 36 using Twinaxial Workstation Controller
Advanced 36 using Twinaxial Workstation Controller
System/36TM using Workstation Controller port on models 5360, 5362, 5363 and 5364
5394 and 5494 control unit using Workstation port
3174 Controllers (Release 3.0 or higher)
ES/9370, ES/9000 Processors using the Workstation Subsystem Controller port (FC 6020 or 6120)
Ethernet LAN using the internal Ethernet NIC feature
100/120/220/240 AC nominal, 50/60 Hz
Relative humidity: 10% to 90% RH
Temperature: 50 degrees to 104 degrees F (10 degrees to 40 degrees C)
General Purpose Ribbon-average life: 20M or 30M DP characters
High Contrast Ribbon-average life: 20M or 30M DP characters: With visible light: 2500 or 3600 AIAG-B3 labels With infrared light: 1300 or 1800 AIAG-B3 labels
