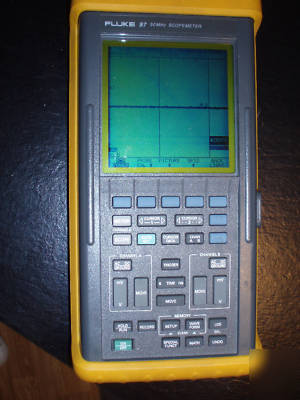

Fluke 97 50 mhz scopemeter oscilloscope multimeter
I know nothing about this just that it powers up. Please feel free to ask any Q's and will answer them if I can.
REMOVED FLUKE BATTERY PACK WHICH WAS BAD AND REPLACED WITH FOUR (4) "C" BATTERIES. NO AC ADAPTER.
NO LEADS INCLUDED ~ PROTECTIVE BOOT IS INCLUDED
The Fluke 97 ScopeMeter combines the capabilities of a dual-trace, digital storage oscilloscope with the versatility of a digital multimeter.
This combination allows you to analyze and compare complex waveforms, read voltage levels, or simply measure resistance.
Fluke 97 technical specifications
Sample Rate 25 Megasamples/second
Autoset Automatically sets Voltage, Time & Trigger
Multimeter Display 3 2/3 Digits (> 3000 Counts)
True RMS Volts AC or AC+DC up to 600V (1700V Pk-Pk)
Time/Division 10 ns/div to 60 sec/div
Volts/Division 1 mV/div to 100 V/div
Digital Delay or Pre-Trigger By Number of Cycles, Events, Time or Zoom Mode
Special Multimeter Modes Min Max Average Record with Time Stamp, Relative (zero), dBm, dBV, dBW, Audio Watts, %Scale, Frequency, %Duty Cycle, Smoothing , Change Alert
Oscilloscope Cursors 15 Measurements, Display 5 Simultaneously
Waveform Processing Average, Min Max, Record, Variable Persistence
Waveform Memory Store & Recall 8 Waveforms
Waveform Mathematics Add, Subtract, Multiply, Invert, Filter or Integrate Waveforms
Signal Generator Output Sine wave or Square wave
Component Tester Output Voltage or current ramp
Size 2.4" H x 5.1" W x 10.2" L
Internal Battery Pack NiCad, 4.8V
Operating Time 4 hours / typical
Line Voltage Adapter/Battery Charger standard
Fluke 97 Performance Characteristics
Simultaneous Maximum Sampling Rate/ch 25 MSa/s
One ch. only max. sampling rate 25 MSa/s
Max. Single Shot bandwidth 50 MHz
Min. Vertical Sensitivity 1 mV/div
Maximum Vertical Sensitivity 100 V/div
Input Impedance (alternate) 10 MOhm
Maximum Input Voltage 300 Vrms
Maximum Input#2 (for Impedance #2) 600 Vrms
Main time base - lowest 10 ns/div
Main time base - highest 5 s/div
Trigger Source External,Internal
Fluke 97 Programmability/Connectivity
Ports to Peripheral Devices RS232C
Test Pattern Storage 10 Patterns
Fluke 97 Standard Accessories (NONE OF THESE COME WITH IT EXCEPT FOR THE RUBBER HOUSING CASE)
1 /Multimeter Test Lead Set /Qty:1
2 /Probe tip to Banana plug adapter /Qty:1
PM 8907/003 /Line Voltage Adapter/Battery Charger /Qty:1
PM 9081/001 /Dual Banana plug to female BNC Adapter /Qty:1
PM 9083/001 /Yellow Protective Holster /Qty:1
PM 9086/001 /NiCad Battery Pack /Qty:1
