Northern computers n-1000-iii door controller 2 readers

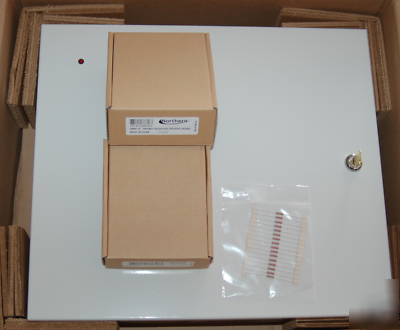

Northern Computers N-1000-III Intelligent 2 Door Controller and 2 OminProx Readers
Northern Computers N-1000-III Intelligent 2 Door Controller and 2 Proximity Readers OP-10
2 reader/keypad access control panel. Supports
proximity, smart, Wiegand, magnetic stripe, keypad,
barcode, vehicle ID and biometric devices. 5,000 code
capacity, 10,200 buffer capacity, 4 relays (DPDT),
16 supervised alarm inputs standard, 20mA or RS-485
communications (RS-485 requires the use of N-485-HUB-2
or N-485-PCI-2 interfaces). Includes 12V battery backup,
detachable terminal blocks, locking enclosure with tamper
switch. 12V 500mA output for external readers.
Requires 16.5VAC transformer (X-4) or 12VDC power
supply (HPS123) for panel power and one suppressor kit
(S-4) per used (active) relay. Current draw is 1.8A maximum.
Dimensions: 14" H x 18" W x 4" D (35.5cm H x
45.6cm W x 10.0cm D). Use with WIN-PAK software.
