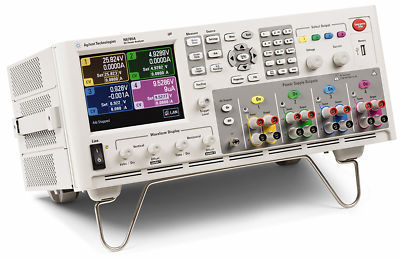

Agilent certiprime N6705A dc power analyzer
Agilent N6705A DC Power Analyzer
The most award winning product in Agilent Technologies' history.
* 4-slot mainframe holds up to 600W of total power and up to 4 modules, with 21 DC power modules to choose from (modules ordered separately)
* Output speeds of up to 160 microseconds per step voltage change
* Voltmeter Accuracy: Up to 0.016% + 1.5 mV, up to 18 bits
* Ammeter Accuracy: Up to 0.03% + 15 A, up to 18 bits
* Arbitrary waveform generator function: Bandwidth up to 4500 Hz, output power up to 300 W
* Scope function digitizes voltage and current at 50 kHz, 4096 pts, up to 18 bits
* Datalogger function: Measurement interval from 1 ms to 60 s, max of 500 M readings per datalog
* 64 MB of non-volatile data storage for datalog, scope traces, instrument settings
* There is a 7 day right of return
* We offer a 6 month Agilent warranty
