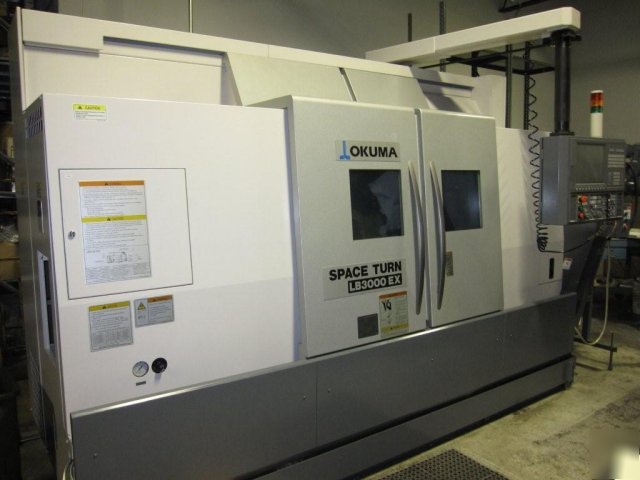

Okuma space turn LB3000-ex myc
OKUMA SPACE TURN LB3000-EX MYC
CNC TURNING CENTER WITH "Y" AXIS AND MILING
NEW: 2008 - VERY LOW HOURS - ONLY 735 CUTTING HOURS
SWING OVER BED.......................... 22.83"
SWING OVER SADDLE....................... 18.5"
MAXIMUM MACHINING DIAMETER.............. 16.1"
MAXIMUM MACHINING LENGTH................ 39.37"
SPINDLE BORE............................ 3.58"
SPINDLE NOSE............................ A2-8
X- AXIS.................................. 10.24"
Z-AXIS.................................. 22.24"
Y-AXIS.................................. +2.76"/-1.97"
TAILSTOCK TRAVEL........................ 20.28"
SPINDLE SPEEDS.......................... 45 TO 5,000 RPM
TURRET.................................. V12 STATIONS
TURRET INDEXING TIME.................... 0.15 SECONS
LIVE TOOL SPINDLE SPEEDS................ 45 TO 6,000 RPM
RAPID TRAVERSE (X-Z-Y AXIS)............. 984/1,181/492 IPM
MAIN SPINDLE MOTOR...................... 30/40 HP
LIVE TOOL SPINDLE MOTOR................. 9.6 HP
* OKUMA THINC-OSP CNC PC WINDOWS BASED PLATFORM CONTROL
* PLUG & PLY USB CAPABILITY * 40 GB MEMORY
* HI-G * LAP4 * USER TASK 2 * MAC MAN * TOOL LIFE MANAGEMENT
* 10" KITAGAWA 3-JAW CHUCK AND ROYAL S-35 COLLET CHUCK
* CHIP CONVEYOR * TOUCH SETTER * 4-LIVE TOOL HOLDERS
THIS MACHINE IS LIKE NEW CONDITION - ONLY 735 CUTTING HOURS
See additional photos on our web site: http://uen.hsix.com/q/webinv/015870=x,1219
