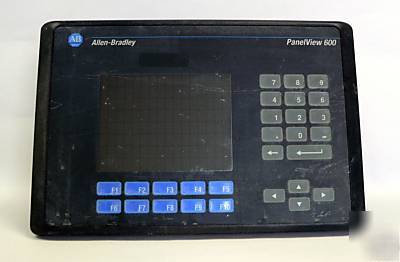

Abt 2711-B6C5X allen bradley panelview 600 touch screen
Barely USED Surplus Material in
1 Power Connection Terminals Connects to external power source.
2 Nameplate Label Provides product information.
3 Memory Card Slot Accepts a memory card which stores applications.
4 Sealing Gasket Seals the front of the terminal to an enclosure or panel.
5 FAULT Status (Red) Indicator Indicates firmware or hardware faults.
6 COMM Status (Green) Indicator Indicates when communication is occurring.
7 DH-485 Communication Port Connects to an SLC or MicroLogix controller, DH-485 network, or Wallmount Power
8 DH-485 Programming Connector Connects to a Personal Computer Interface Converter (Cat. No. 1747-PIC) for
transferring applications. Also connects to an SLC programmer, such as the
Hand-held Terminal (Cat. No. 1747-PT1).
9 RS-232 (DH-485) Communication Port Connects to the Channel 0 port of an SLC 5/03, 5/04, or 5/05 for point-to-point
DH-485 communication. Connects to a MicroLogix controller through an AIC+ Link
Coupler. Also connects to the RS-232 serial port of a computer for transferring
10 Remote I/O Port Connects to a scanner or sub-scanner on a remote I/O network.
11 DH+ Communication Port Connects to a PLC-5, SLC 5/04, or ControlLogix controller on a DH+ link.
12 DeviceNet Connector Connects to a DeviceNet network.
13 ControlNet Connector Connects to a ControlLogix controller (with 1756-CNB module) or PLC-5 on a
14 (RS-232) DF1 Communication Port Connects to a PLC, SLC, or MicroLogix controller with a DF1 port.
15 Ethernet Connector Connects to a PLC-5E or SLC 5/05 controller, or a ControlLogix, MicroLogix, FlexLogix,
or CompactLogix (with appropriate bridge module) on an EtherNet/IP network.
16 RS-232 Printer/File Transfer Port Connects to a printer.
On remote I/O, DH+, DF1, DeviceNet, EtherNet/IP, or ControlNet terminals, this port
also connects to the RS-232 port of a computer for transferring applications.
The RS-232 port on the DH-485 or RS-232 (DH-485) terminal is used to connect a
printer but not for file transfers.
