Digital multimeter tester inductance thermometer ac dc
Digital Multimeter Tester Inductance Thermometer AC DC

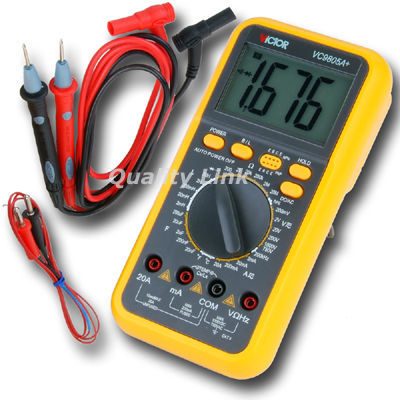

Brief Description: This digital multimeter (VC9805A+) is a high performance, stable and accurate instrument with large 42mm-high backlight LCD display to measure DC and AC voltage, DC and AC current, Resistance, Capacitance, Inductance, Temperature, Frequency, Transistor, Diode, Triode and Continuity Test. The designed parameter include: unit indication, data hold (HOLD), auto off and buzzer sounds. The instrument takes dual-integral A/D converter as a key point, this multimeter is most suitable for use on production lines or lab, R & D, maintenance and repairing work. Features:
* Dual-slope DC/AC converter CMOS technology for auto-zero, polarity selection and over-range indication.
* New type holster, streamline design
* 3 digit Large LCD Display
* Metallic screen board with stronger antimagnetic and anti-interferential function.
* Full function protection, anti-high voltage circuit design.
* Low battery display indication
* Display: 3 digit Large LCD with a max readings of 1999.
* Measuring method: Dual-slope A/D Transfer
* Sampling Rate: approx. 3 Times / Second
* Over range indication: MSD displays 1 / OL or -1 / -OL
* Safety Standards: CE; IEC1010
* Operating Temperature: 0 ~ 40 C (32 - 104 F)
* Operating Humidity: below 80% RH
* Storage Temperature: -10 ~ 50 C (14 - 122 F)
* Storage Humidity: below 80% RH
* Low battery display auto turn off (after turn on 15 minutes)
* Power: 1 x 9 V PP3 battery (included)
* Dimensions: 190 (H) x 93.5 (W) x 37 (D) mm (7.48 x 3.68 x 1.46 inch)
* Weight: approx. 448g (batteries included)
Electrical Specifications: Accuracy is (percentage of reading + number of digit) at (23 5) C, <75% Relative humidity. DC Voltage
Input impedance: 10 M Overload protection:Range 200mV: DC 250V or AC peak valueOther ranges: 1000 V DC or AC peak value AC Voltage
Input impedance: 400 mV range: more than 40 M ; other range: 10 M Overload protection: Range 200 mV: DC 250 V or AC peak valueOther ranges: DC 1000 V or AC peak valueFrequency response: Range less than 200 V: 40-400 Hz ; Range 750 V: 40-100 HzIndication: RMS of sine wave (mean value response) DC Current
Max measuring voltage drop: 200 mVMax input current: 20A (within 10 seconds)Overload protection: 0.2A / 250V restorable fuse, range 20A infused. AC Current
Max measuring voltage drop: 200 mVMax input current: 20A (within 10 seconds)Overload protection: 0.2A / 250V restorable fuse, range 20A infused.Frequency response: 40-100 HzIndication: RMS of sine wave (mean value response) Resistance ( )
Open voltage: less than 3VOverload protection: 250V DC/AC Peak Value Note:A. At range 200 , short-circuit the test leads to measure the resistance of the wire, then subtracts it from the real measurement. B. At range 200 M , when the test leads short circuit, LCD displays 1.0 M . In the same way, the reading is 10 M while the test leads short at range 2000 M . It s normal and does not affect the accuracy. Please deduct the value from the real measurement. C. The reading should be displayed slowly when the measurement is more than 1 M . Please wait until stable. Capacitance
Overload protection: 36V DC/AC Peak Value Inductance (L)
Overload protection: 36V DC/AC Peak Value Temperature
< 400 C, (1.0% + 5d) 400 C, (1.5% + 15d)
< 750 F (0.75% + 5d) 750 F (1.5% + 15d)
Thermocouple: K Type (Banana shape plug) Frequency
Input Sensitivity: 1.0V RMSOverload protection: 250V DC/AC Peak Value (within 10 seconds) Diode and Continuity Testing
Forward DC Current is approx. 1 mA. Backward voltage is approx. 3 V
Buzzer makes a long sounds while resistance is less than (70 20) Ohms
Open Circuit Voltage is approx. 3 V
Overload Protection: 250 V DC/AC peak valueWarning: Do not input Voltage at the range for safety Transistor hFE Data Test
Basic current is approx. 10 A, Vce is about 3V
* 1 x Multifunction Digital Multimeter
