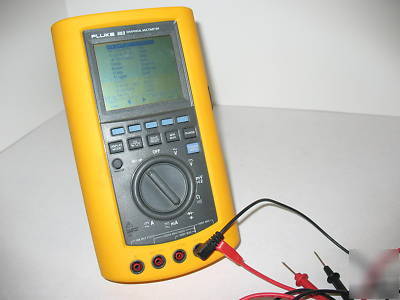

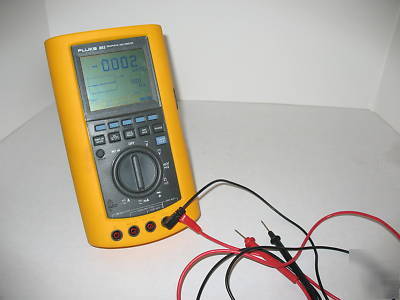

Fluke 863 graphical multimeter digital dmm used
MANUAL: http://assets.fluke.com/manuals/867b_863umeng0300.pdf
Combo mode shows combined meter and and waveform displays for quick check of distorted waveforms.
Record events and trends. Helpful for troubleshooting intermittent problems or profiling loads.
Glitch Capture displays voltage impulses (spikes) which can effect data communications and electronic equipment.
A basic dc accuracy of 0.025% allows the 867B to discriminate low-level dc variations in transducers and analog electronics. Accurate current measurements, with resolution down to 10 nA, can track the output of industrial transmitters and the current draw of electronic circuits.
Using the TrendGraph Display mode you can plot meter readings in intervals of 1, 2, 5, 10, 15, 30, or 45 seconds or 1, 2, 5, 10, or 15 minutes. Log a single parameter for up to 30 hours and then view the results, or use the optically isolated RS-232 interface to print or download your recorded measurements to a PC.
Measure frequency from 2 Hz to 10 MHz (863 to 2 MHz), displaying pulse width, duty cycle, or period.
The 860 Series single shot capability helps you capture transients as short as 1 microsecond, spot power sags and surges, or check the quality of signals up to 1 MHz.
Component signatures (867B only).
Isolate digital failures fast by observing digital activity up to 10 MHz. The logic mode indicates stuck low, stuck high, or active signal lines.
