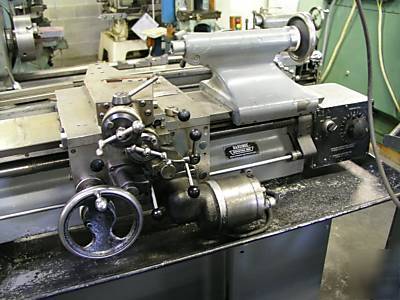

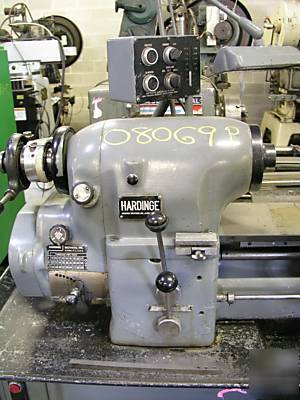

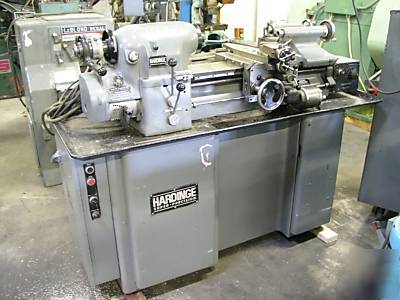

Hardinge hlvh precision tool room lathe
Swing Over Cross Slide: 6 1/2"
Spindle Mount: Hardinge Taper with 5-C Collet Internal Taper
Variable Spindle Speeds: 125 to 3000 RPM
Spindle Thru Hole Diameter: 1 1/4"
Collet Capacity in Round Stock: 1 1/16"
Variable Feed Rates, Longitudinal: 5/16 to 7 IPM
Variable Feed Rates, Cross Feed: 3/16 to 4 IPM
(36) English Threads: 11 to 108 TPI
Inch Graduated Dials on Each Axis & Tailstock Quill
#3 MT in Tailstock Quill, 3-5/8" Quill Travel
Leadscrew with Quick Change Gear Box - Inch Only
Control Levers for High-Low Speed & Forward-Stop-Reverse
Spindle Brake On-Off Selector Switch
Coolant On-Off Auto Selector Switch
(2) Adjustable Carriage Feed Kick Out Stops
One Shot Lube to Carriage, Machine Work Light
Hard Dovetail Bed Ways (Good Condition)
Carriage Taper Attachment - Parts Missing in Slide Connection

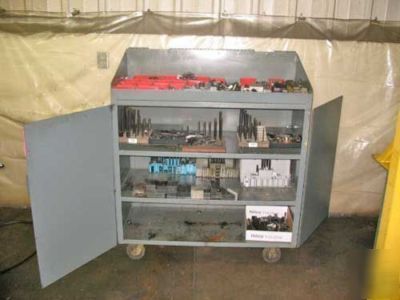

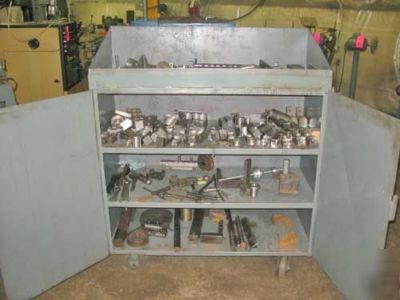

Cabinet Base with Collet Racks - No Collets
1/10 HP Coolant Pump Motor, 3 Phase, 60 Cycle, 220 Volts Only
? HP Main Motor, 3 Phase, 60 Cycle, 208 Volts Only
Overall Size: 69" L-R x 31" F-B x 58" H
