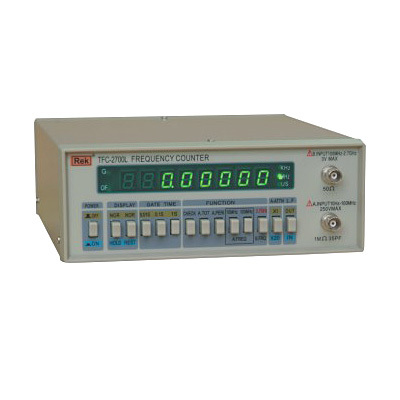

Rek tfc-2700L frequency counter 1HZ to 2700MHZ
Three ranges of TFC-2700L can measure input frequency from 1 Hz 2700 MHz bandwidth, The inner termperature-offset oscillator (TCXO) insure the test accuracy during a long time operation, It is also adapt to low frequency test and get a reletive exact test result because of Hi-frequency processor..
Display: 8 bit green digital LED display
Strobe: Hz,kHz,MHz,GHz red LED indicator.
Frequency range: 1 Hz 2700 MHz
Strobe time: 0.1sec.,1 sec.,10 sec.
Input characteristics A Range:1 Hz 20 MHz 20 mVrms / 1M
B Range:100 kHz 120 MHz 50 mVrms / 1M
C Range::80 MHz 2700 MHz 20 mVrms / 50
Time base characteristics: Frequency 20M (PTX0, termperature-offset oscillator)
Power dissipation: 220 V 10%, 15W
